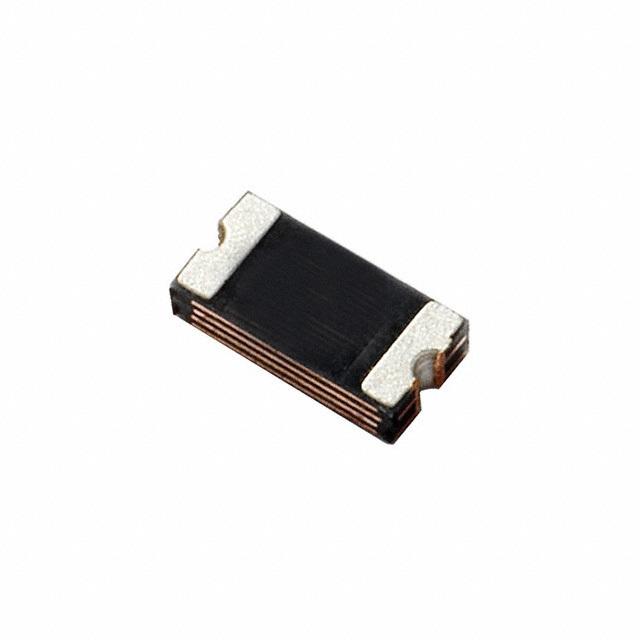

自恢复保险丝—PPTC 6V POLYFUSE 1206 LoRho SL 0.75A
With this PTC resettable fuse from you will no longer have to replace a fuse when it burns out. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.4Max mm long, 0.7Max mm tall and 1.8Max mm deep.
额定电压DC 6.00 V
工作电压 6.00 V
跳闸时间 300 ms
耗散功率 0.8 W
电阻 0.18 Ω
保持电流 750 mA
跳闸电流 1.5 A
额定电流Max 50 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.7 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
