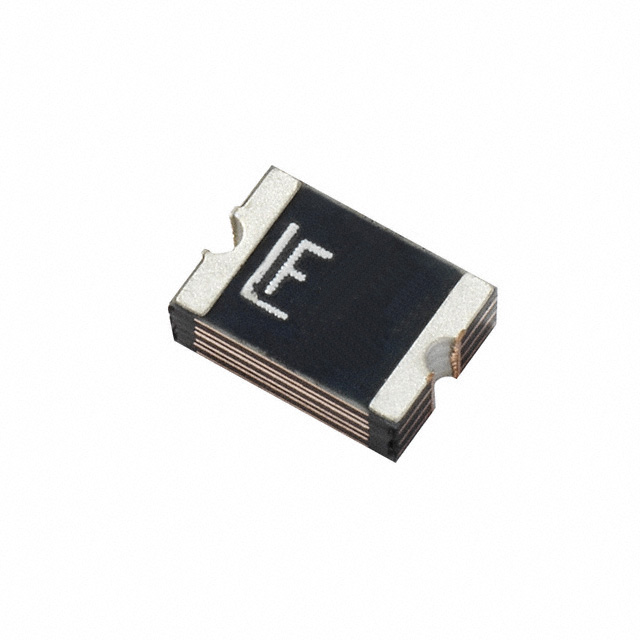

LITTELFUSE 1812L035/30DR. 自恢复保险丝, PTC, 1812, 30VDC, 350mA
聚合物 PTC 自恢复保险丝 30V Ih 表面贴装型 1812(4532 公制),凹陷
得捷:
PTC RESET FUSE 30V 350MA 1812
立创商城:
30V 350mA
贸泽:
Resettable Fuses - PPTC PTC 30V POLY 1812 HALOGEN-FREE .35A
e络盟:
LITTELFUSE 1812L035/30DR 自恢复保险丝, PTC, 1812, 30VDC, 350MA, 整卷
艾睿:
This 1812L035/30DR PTC resettable fuse from Littelfuse is an alternative to replacing burned out fuses. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 1.25Max mm tall and 3.41Max mm deep.
Chip1Stop:
PTC Resettable Fuse 0.35Ahold 0.75Atrip 30VDC 100A 0.8W 0.15s 0.4Ohm SMD Solder Pad 4.5 x 3.2 mm T/R
Verical:
PTC Resettable Fuse 0.35Ahold 0.75Atrip 30VDC 100A 0.8W 0.15s 0.4Ohm SMD Solder Pad 1812 T/R
Newark:
# LITTELFUSE 1812L035/30DR PPTC Resettable Fuse, SMD, POLYFUSE 1812L Series, 350 mA, 750 mA, 30 VDC, -40 °C
儒卓力:
**Resettable Fuse 350mA 30V SMD **
Win Source:
FUSE PTC RESET .35A 30V 1812
额定电压DC 30.0 V
工作电压 30 VDC
跳闸时间 150 ms
额定电流 40 A
耗散功率 0.8 W
电阻 1.7 Ω
保持电流 350 mA
跳闸电流 750 mA
额定电流Max 100 A
保持电流Max 350 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
工作电压Max 30 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.73 mm
宽度 3.41 mm
高度 1.25 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
