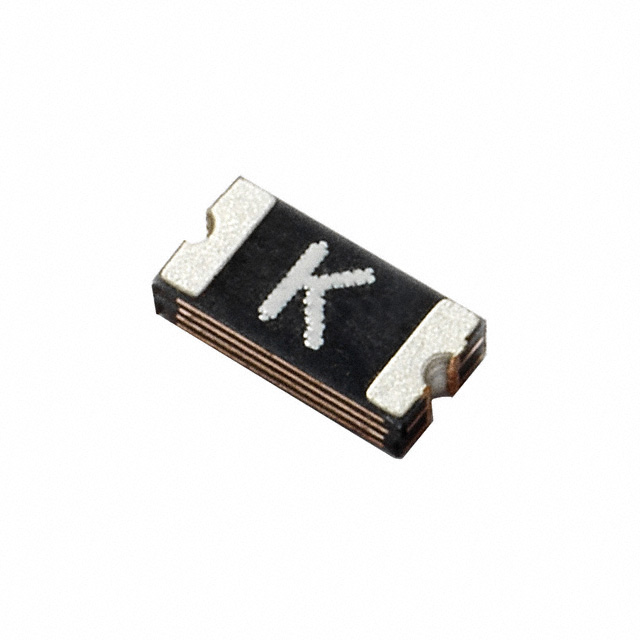

LITTELFUSE 1206L450SLWR 保险丝, 自复式, PTC, 6VDC, 4.5A, SMD 新
聚合物 PTC 自恢复保险丝 6V Ih 表面贴装型 1206（3216 公制），凹陷
得捷:
PTC RESET FUSE 6V 4.5A 1206
立创商城:
1206L450SLWR
贸泽:
Resettable Fuses - PPTC 6V POLYFUSE 1206 LoRho SL 4.50A
e络盟:
保险丝, 自复式 PTC, 6VDC, 4.5A, SMD
艾睿:
This 1206L450SLWR PTC resettable fuse from Littelfuse is an alternative to replacing burned out fuses. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.4Max mm long, 1.4Max mm tall and 1.8Max mm deep.
Chip1Stop:
PTC Resettable Fuse 4.5Ahold 9Atrip 6VDC 50A 0.8W 2s 0.001Ohm SMD Solder Pad 1206 T/R
Verical:
PTC Resettable Fuse 4.5Ahold 9Atrip 6VDC 50A 0.8W 2s 0.001Ohm SMD Solder Pad 1206 T/R
Newark:
# LITTELFUSE 1206L450SLWR PPTC Resettable Fuse, SMD, POLYFUSE LoRho Series, 4.5 A, 9 A, 6 VDC, -40 °C
额定电压DC 6.00 V
工作电压 6.00 V
跳闸时间 2 s
额定电流 50 A
耗散功率 0.8 W
电阻 0.014 Ω
保持电流 4.5 A
跳闸电流 9 A
额定电流Max 50 A
保持电流Max 4.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
安装方式 Surface Mount
封装公制 3216
封装 1206

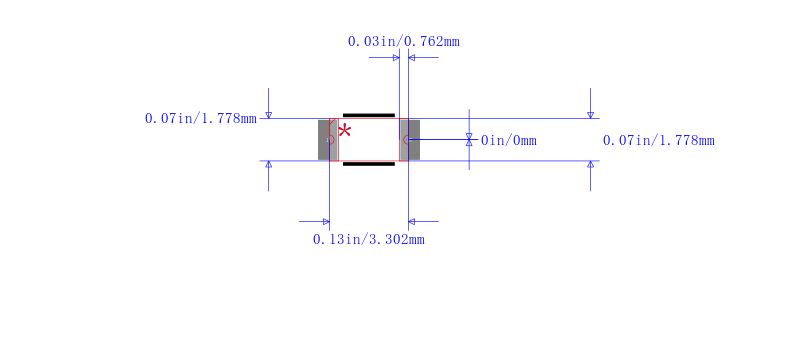

长度 3.4 mm
宽度 1.8 mm
高度 1.4 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
