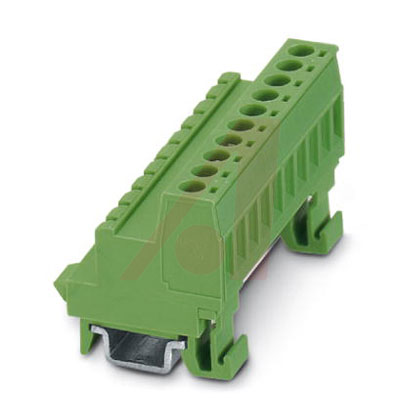

DIN导轨式接线端子 10 Pos 5mm pitch Through Hole Header
10 接线板 - 专用 绿色 插头连接 - 同轴 29.1mm
得捷:
TERM BLK PLUG 10POS 29.1MM GREEN
贸泽:
Pluggable Terminal Blocks 10 Pos 5mm pitch Through Hole Header
艾睿:
Perfect for troubleshooting this din rail 1765085 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. This HDR connector has 10 HDR contacts. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 5 mm. 1765085 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 24.2 mm tall.
Allied Electronics:
Trm Blk, 10Way/Pole, Screw Terminals, 24 to 12AWG DIN Rail Mount, Polyamide
Verical:
Conn PC Terminal Block HDR 10 POS 5mm RA T DIN Rail 12A
MASTER:
DIN rail connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mounting:
Online Components:
Conn DIN Rail HDR 10 POS 5mm RA T DIN Rail 12A
Electro Sonic:
DIN rail connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² ...
触点数 10
线规 12AWG ~ 30AWG
触点电镀 Tin
排数 1
电路数 10
易燃性等级 UL 94 V-2
针脚数 10
安装角度 90.0 °
额定电流Max 12 A
额定电压Max 320 V
工作电压Max 250 V
安装方式 DIN Rail, Screw
引脚间距 5.00 mm
长度 52.3 mm
宽度 51.6 mm
高度 24.2 mm
引脚间距 5.00 mm
外壳颜色 Green
颜色 Gray
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
