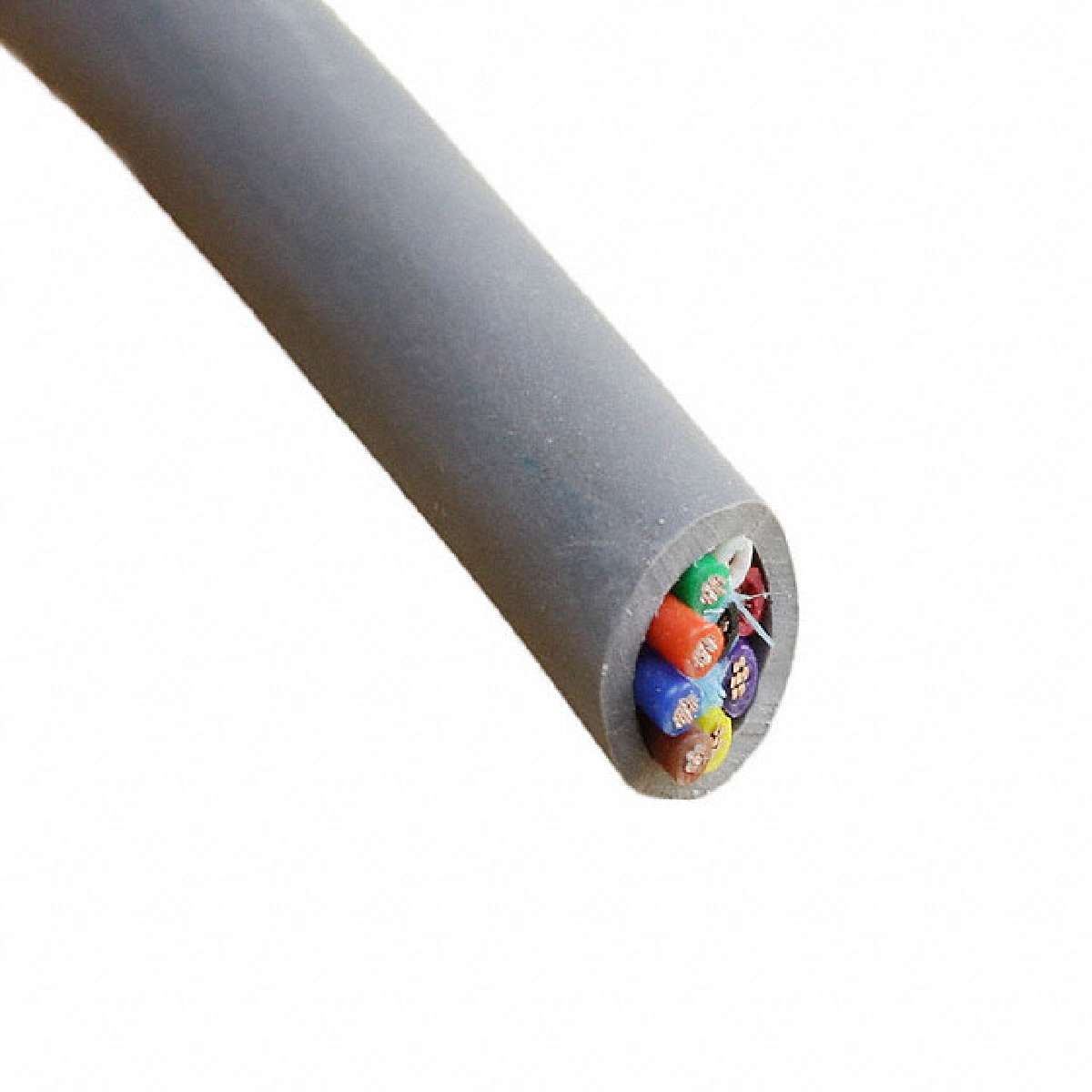

ALPHA WIRE 1299C SL001 Multiconductor Shielded Cable, Control, Slate, 9Conductor, 22AWG, 0.35mm², 1000Ft, 304.8m
The is a 9-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.
- .
- 55lbs Maximum pull tension
- .
- 90pf/ft at 1kHz Nominal ground capacitance
- .
- 0.18µH/ft Nominal inductance
- .
- 16.4R/1000ft at 20°C Nominal conductor DC resistance DCR
- .
- 11.8R/1000ft at 20°C Nominal OA shield DC resistance DCR
线规 22 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 9
工作温度Max 75 ℃
额定电压 300 V
长度 304.8 m
颜色 Violet
绝缘材质 PVC
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Sensing & Instrumentation, Security, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals, Audio, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1299C SL001 Alpha Wire | 当前型号 | 当前型号 |
1299C SL002 Alpha Wire | 功能相似 | 1299C SL001和1299C SL002的区别 |
