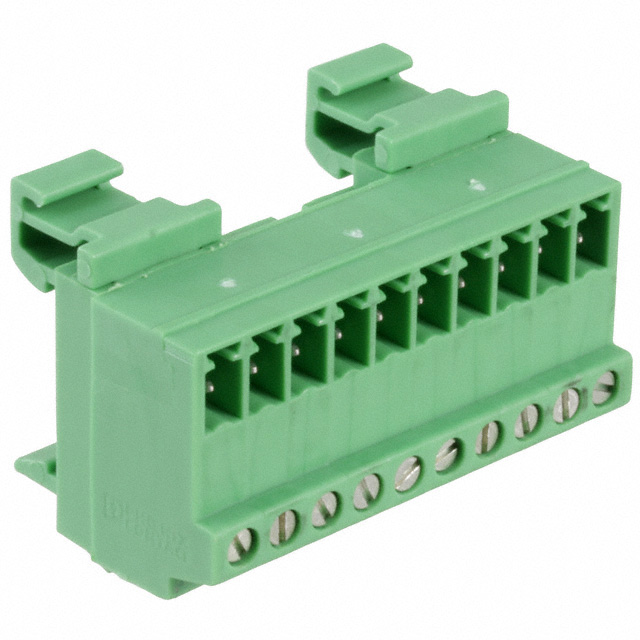

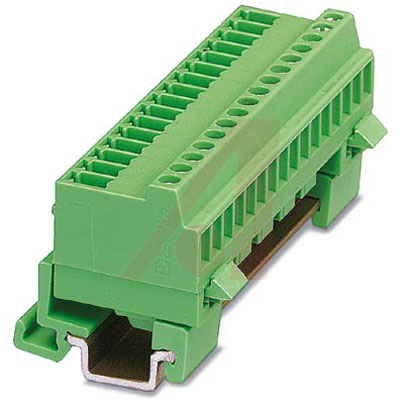

Conn DIN Rail M 10POS 3.81mm Screw T DIN Rail 8A
**Universal Terminal Block**
Professional range of wire to wire universal terminal blocks from Contact
得捷:
TERM BLK PLUG 10POS 27.8MM GREEN
欧时:
DIN rail terminal block, 3.81mm, 10 way
艾睿:
Phoenix Contact&s;s din rail 1832811 PCB terminal block will ensure strong connections between circuits. This M connector has 10 contacts that are plated with tin. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a male type gender. 1832811 is housed in polyamide. This device has a maximum current rating of 8 A. This product is 39.49 mm long, 27.8 mm tall and 26.7 mm deep. It uses the screw termination method.
Allied Electronics:
Trm Blk, 10Way/Pole, Screw Terminals, 30 to 14AWG DIN Rail Mount, Polyamide
Verical:
Conn DIN Rail M 10 POS 3.81mm Screw T DIN Rail 8A
MASTER:
DIN rail connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mounting
Online Components:
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Assembly: DIN rail
