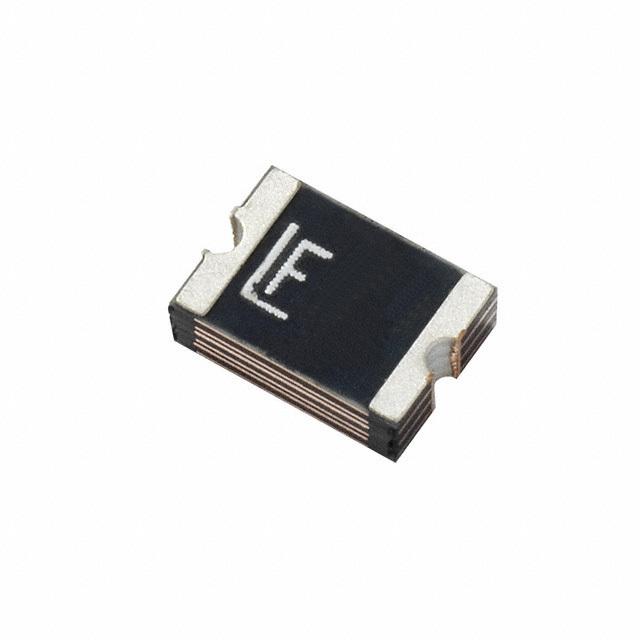

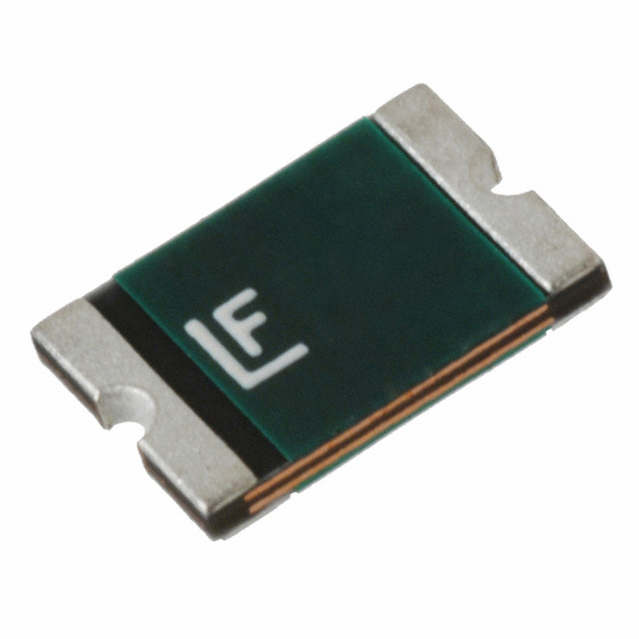

POLYFUSE恢复PTC POLYFUSE Resettable PTCs
An automatically resetting fuse like this PTC resettable fuse from is ideal for quickly restoring protected equipment into operation after a fuse burns out. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 0.7Max mm tall and 3.41Max mm deep.
额定电压DC 6.00 V
工作电压 6 V
跳闸时间 4.5 s
耗散功率 1 W
电阻 0.025 Ω
保持电流 1.9 A
跳闸电流 4.9 A
额定电流Max 50 A
保持电流Max 1.9 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 VDC
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.73 mm
宽度 3.41 mm
高度 0.7 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
