Conn DIN Rail F 12POS 5.08mm Screw G DIN Rail/T DIN Rail 12A
12 接线板 - 专用 绿色 插头连接 - 同轴 42.5mm
得捷:
TERM BLK PLUG 12POS 42.5MM GREEN
艾睿:

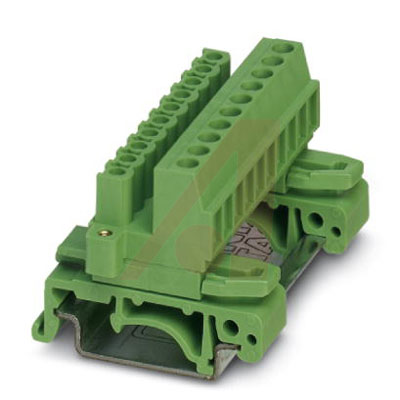

This din rail 1859276 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 12 contacts that are plated with tin. It has a female type gender. It has a maximum voltage rating of 320 V. This is a 1-row connector. Its pitch is 5.08 mm. 1859276 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. This product is 71.08 mm long, 43.5 mm tall and 42.5 mm deep. It uses the screw termination method.
Allied Electronics:
Trm Blk, 12Way/Pole, Screw Terminals, 30 to 12AWG DIN Rail Mount, Polyamide
Verical:
Conn DIN Rail F 12 POS 5.08mm Screw T DIN Rail 12A
MASTER:
DIN rail connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mountin
Online Components:
Conn DIN Rail F 12 POS 5.08mm Screw G DIN Rail/T DIN Rail 12A
Electro Sonic:
DIN rail connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² ...
