1N6490US

1.5瓦齐纳二极管 1.5 WATT ZENER DIODES

1.5 WATT GLASS ZENER DIODES

贸泽:
Zener Diodes Voltage Regulator

艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator 1N6490US zener diode from Microsemi. Its maximum power dissipation is 1500 mW. This device has a maximum regulator current of 280 mA. Its maximum leakage current is 1 μA. Its test current is 49 mA. It is made in a single configuration. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 175 °C.

Chip1Stop:

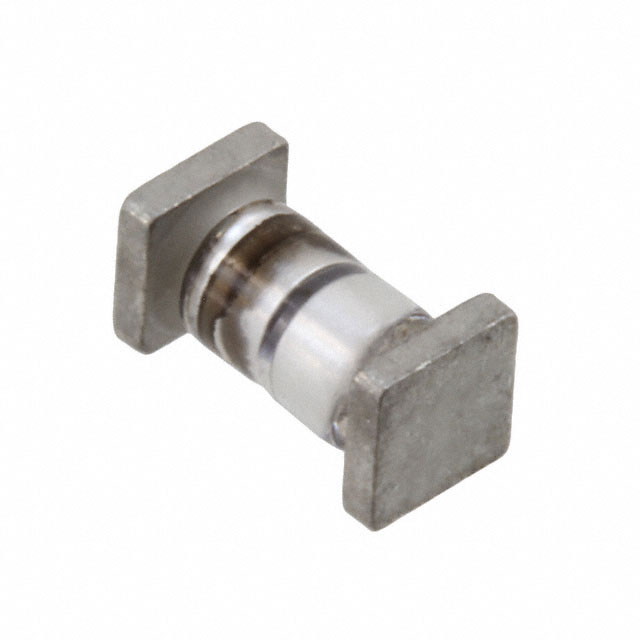

Diode Zener Single 5.1V 5% 1.5W 2-Pin A-MELF

Verical:
Zener Diode Single 5.1V 5% 7Ohm 1500mW 2-Pin A-MELF Bag
