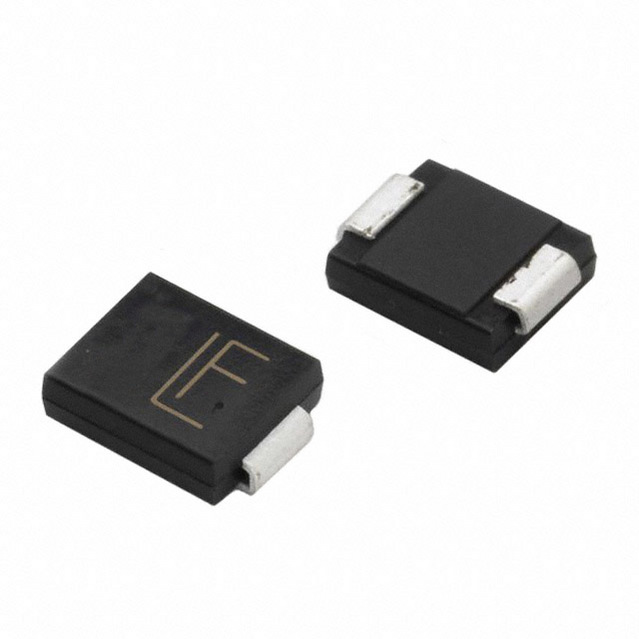

1.5SMC51CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

70.1V Clamp 21.7A Ipp Tvs Diode Surface Mount DO-214AB SMCJ

得捷:
TVS DIODE 43.6VWM 70.1VC DO214AB

艾睿:
Littelfuse&s;s 1.5SMC51CA TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its maximum leakage current is 1 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 70.1 V and minimum breakdown voltage is 48.5 V. Its peak pulse power dissipation is 1500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 43.6V 1.5KW 2-Pin DO-214AB T/R

Verical:
Diode TVS Single Bi-Dir 43.6V 1.5KW 2-Pin SMC T/R
