1-1776275-2

固定接线端子 VERT TERM BLK SIDE Wire En

12 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLK 12P SIDE ENT 3.5MM PCB

立创商城:
3.5mm 排数:1 每排P数:12

贸泽:
固定接线端子 VERT TERM BLK SIDE Wire En

艾睿:

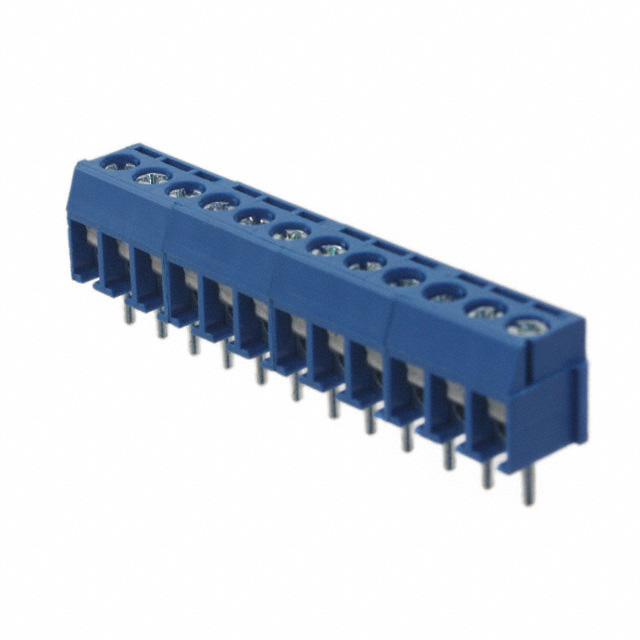

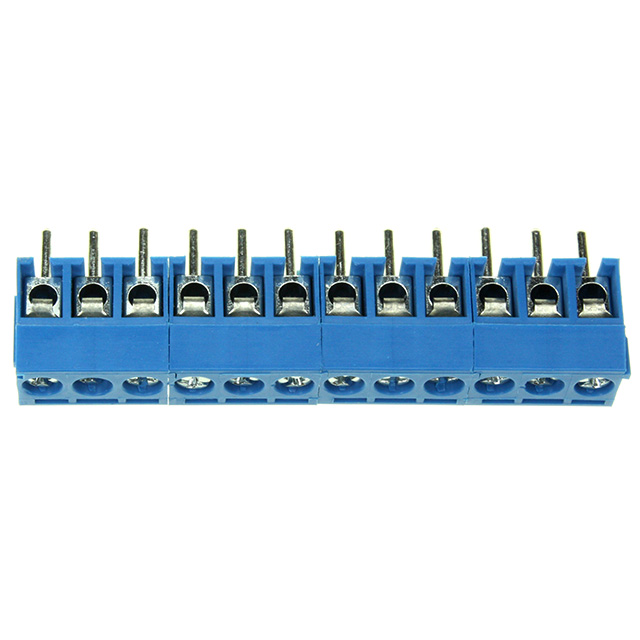

Join your electrical circuits and ensure strong connections with this eurostyle block 1-1776275-2 PCB terminal block from TE Connectivity. It has a maximum voltage rating of 250 VAC. Its pitch is 3.5 mm. This is a 1-row connector. It has a straight body orientation. 1-1776275-2 is housed in ny-fr15. This device has a maximum current rating of 7 A/contact. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -55 to 105 °C. This product is 42.5 mm long, 8.5 mm tall and 7 mm deep. Its wire is 18-26 AWG.

Chip1Stop:
Conn Eurostyle Block 12 POS 3.5mm Solder ST Thru-Hole 7A/Contact

Verical:
Conn Eurostyle Block HDR 12 POS 3.5mm Solder ST Thru-Hole 7A/Contact

MASTER:
Conn Eurostyle Block HDR 12 POS 3.5mm Solder ST Thru-Hole 7A/Contact

Powell:
Terminal Block Connectors

Online Components:
Vertical Term Blk Side Wire En

Electro Sonic:
Vertical Term Blk Side Wire En
