1241.1614

SCHURTER  1241.1614  轻触开关, 不发光, 1.87 N, 42 V, 50 mA, 焊接

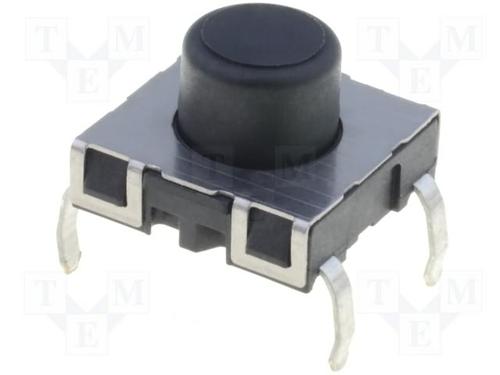

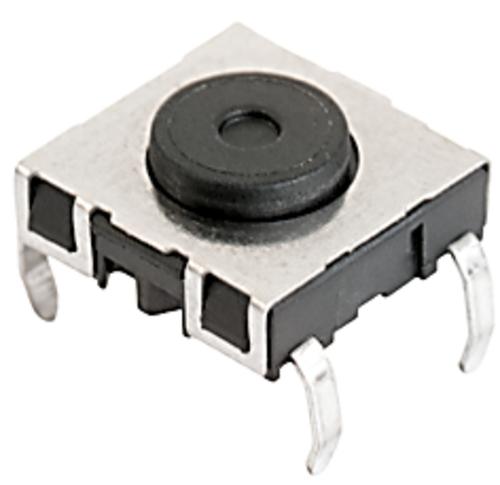

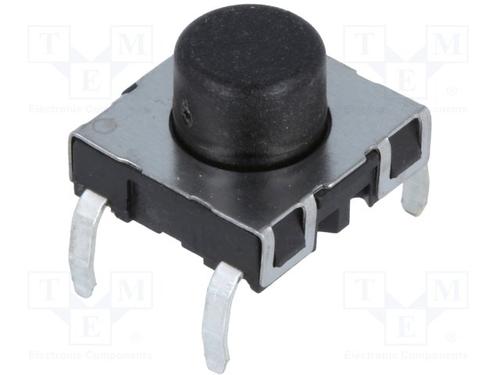

THT Tact Switches - PMS Series

Through hole mounting tact switches suitable for Wave soldering. The Schurter PMS series of tact switches are available in a choice of IP40 or IP67 protection, the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes.

These tact switches require a minimum spacing of 12.7mm to 15mm, have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions.

Momentary switching action

Maximum switching voltage: 30Vac, 42Vdc

Maximum switching current: 50mA

Rated breaking capacity: 0.12W

Contact material: Gold

Life: >1 x 106 cycles

Operating temperature: -40 to + 85°C
