1776113-6

Conn Terminal Block F 6POS 3.81mm Screw ST Thru-Hole 12.5A/Contact

6 接线板 - 线至板 水平，带板 0.150"（3.81mm） 通孔

得捷:
TERM BLK 6P SIDE ENT 3.81MM PCB

艾睿:

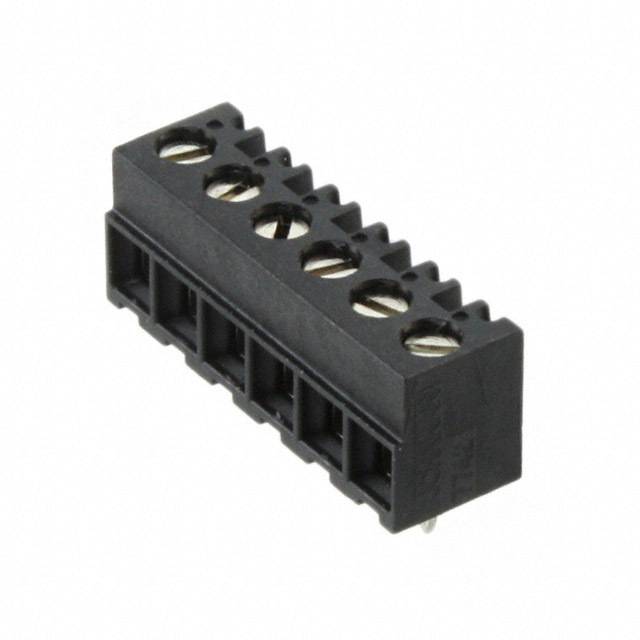

Connect test equipment together with other components by using this 1776113-6 PCB terminal block from TE Connectivity. This F connector&s;s 6 contacts that are made out of copper alloy and plated with tin/nickel. This is a 1-row connector. It has a straight body orientation. It has a female type gender. Its pitch is 3.81 mm. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 12.5 A/contact. 1776113-6 is housed in polyamide. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 16-28 AWG. This product is 22.86 mm long, 8.5 mm tall and 7.3 mm deep.

安富利:
Conn Terminal Block F 6 POS 3.81mm Screw ST Thru-Hole 12.5A/Contact

Verical:
Conn Terminal Block F 6 POS 3.81mm Screw ST Thru-Hole 12A

Powell:
Terminal Block Connectors

Online Components:
6P,3.81MM,SIDE ENTRY,HIGH TMP

Electro Sonic:
6P,3.81MM,SIDE ENTRY,HIGH TMP
