195-7MST

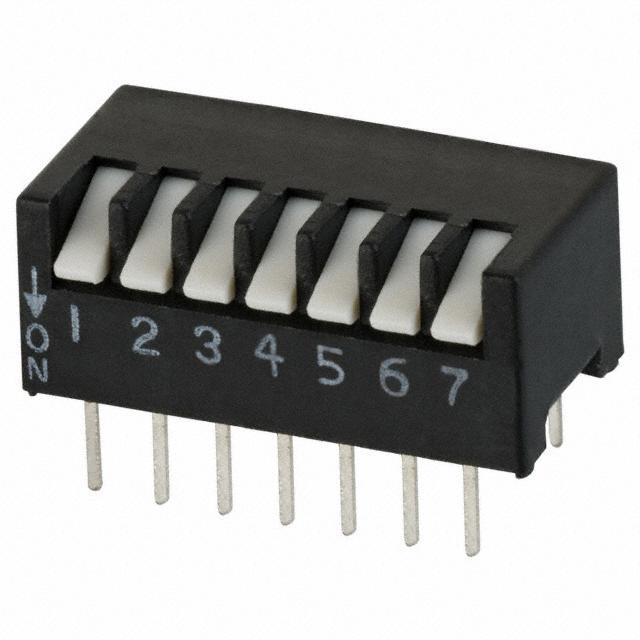

195 系列 侧面触动 单刀单掷 7 位置 通孔 DIP 开关

is manufactured by Electrocomponents and is categorized in the DIP Switches category. 195-7MST is described as SWITCH PIANO DIP SPST 50MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.

得捷:
SWITCH PIANO DIP SPST 50MA 24V

艾睿:
Add push button-type user control to your printed circuit board using the 195-7MST dual in-line package switch from CTS. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 195-7MST DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 24 VDC. This product is 19.96 mm long, 7.9 mm tall and 10.92 mm deep.

Chip1Stop:
Switch DIP OFF ON SPST 7 Piano 0.05A 24VDC PC Pins 2.54mm Thru-Hole Tube
