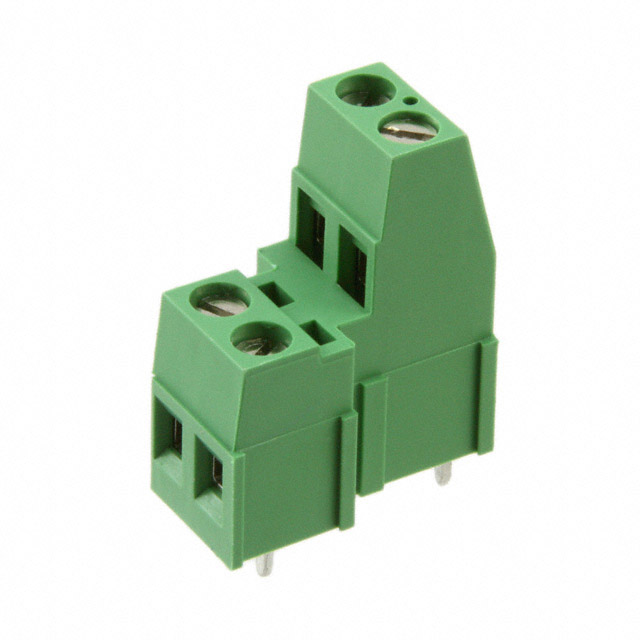

1-796692-0

固定接线端子 10P STACK 5.08mm PC

10 接线板 - 线至板 水平，带板 0.200"（5.08mm） 通孔

得捷:
TERM BLK 10P SIDE ENT 5.08MM PCB

贸泽:
固定接线端子 10P STACK 5.08mm PC

艾睿:
Create a bridge between two sides of a circuit by implementing this eurostyle block 1-796692-0 PCB terminal block from TE Connectivity. This F connector&s;s 20 contacts that are made out of brass and plated with tin/nickel. It has a female type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 17.5 A/contact. 1-796692-0 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 53.84 mm long, 25.2 mm tall and 21.5 mm deep. Its wire is 12-30 AWG.

安富利:
Conn Terminal Block F 20 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Verical:
Conn Eurostyle Block F 20 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact Carton

Powell:
Terminal Block Connectors
