硅雪崩二极管 - 1500W表面贴装型瞬态电压抑制器 Silicon Avalanche Diodes - 1500W Surface Mount Transient Voltage Supressors
344V 夹子 4.4A Ipp TVS - 表面贴装型 DO-214AB(SMCJ)
得捷:
TVS DIODE 214VWM 344VC DO214AB
立创商城:
单向 Vrwm:214V 1.5kW
e络盟:
TVS二极管, 1.5SMC Series, 单向, 214 V, 344 V, DO-214AB, 2 引脚
艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this 1.5SMC250A TVS diode from Littelfuse is perfect for you. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 344 V and minimum breakdown voltage is 237 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Uni-Dir 214V 1.5KW 2-Pin DO-214AB T/R
Verical:
TVS Diode Single Uni-Dir 214V 1.5KW 2-Pin SMC T/R
儒卓力:
**TRANSIL UNI 1,5KW 250V SMC **
额定电压DC 250 V
额定功率 1.50 kW
电路数 1
针脚数 2
钳位电压 344 V
测试电流 1 mA
最大反向击穿电压 263 V
最大正向浪涌电流(Ifsm) 200 A
脉冲峰值功率 1500 W
最小反向击穿电压 237 V
击穿电压 237 V
正向电压Max 3.5 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

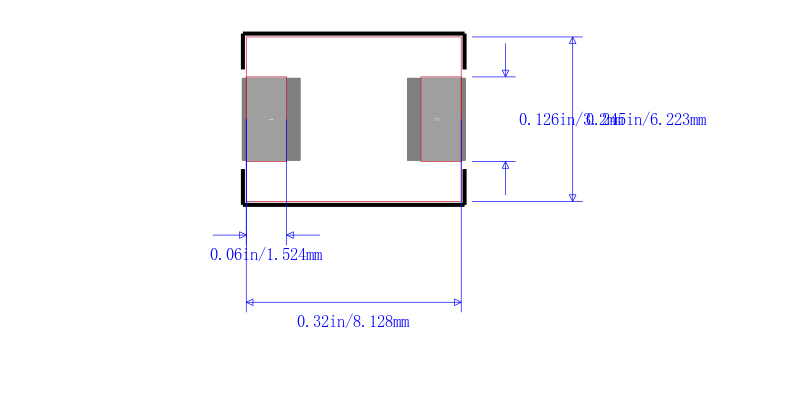

封装 DO-214AB
长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5SMC250A Littelfuse 力特 | 当前型号 | 当前型号 |
SMCJ220A 力特 | 类似代替 | 1.5SMC250A和SMCJ220A的区别 |
1.5SMC250 力特 | 类似代替 | 1.5SMC250A和1.5SMC250的区别 |
1.5SMC250A-E3/57T 威世 | 功能相似 | 1.5SMC250A和1.5SMC250A-E3/57T的区别 |
