1729021

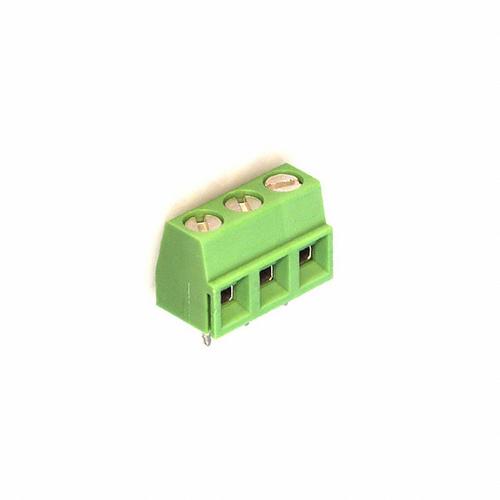

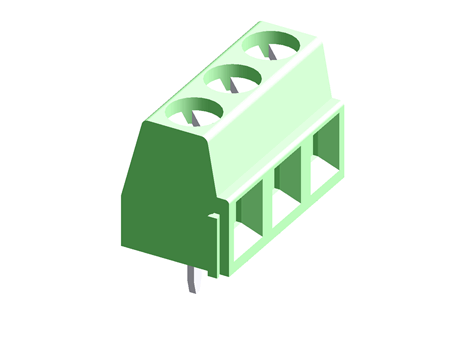

Phoenix Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.Various positions available 5.0 mm pitch Colour: Green ### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块

Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块

Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.

Various positions available

5.0 mm pitch

Colour: Green

得捷:
TERM BLK 3POS SIDE ENTRY 5MM PCB

欧时:
Low profile PCB terminal block,5mm,3 way

立创商城:
5mm 排数:1 每排P数:3

艾睿:

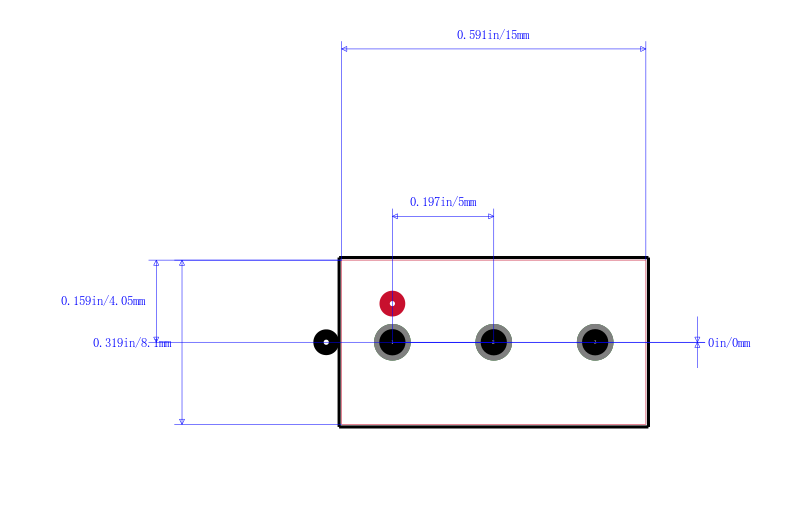

Get the best connections between your circuits with this pc terminal block 1729021 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 250 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. This device has a maximum current rating of 13.5 A. 1729021 is housed in polyamide. Its wire is 16-26 AWG. This product is 15 mm long, 10 mm tall and 8.1 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 3; 5 mm; Front; 26-16 AWG; 13.5 A; 250 V; Solder

Verical:
Conn PC Terminal Block 3 POS 5mm Solder ST Thru-Hole 13.5A Cardboard

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 3 POS 5mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
