1990067

Conn; Term Blk; PCB; Spring Cage; 8; 2.5mm; 45Deg; 24-20AWG; 2A; 300V; Solder

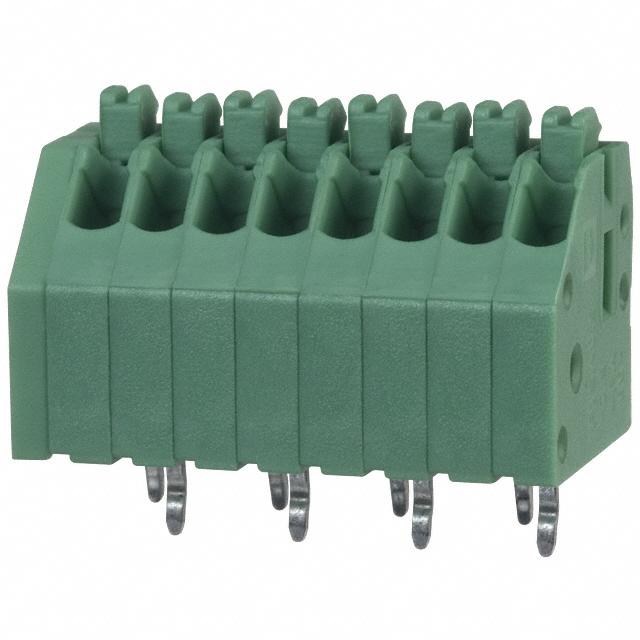

PCB Terminal Block, 2.5 mm Pin Spacing

* Maximum load current 2 A

The PCB terminal block have 2.5 mm pitch.

欧时:
PTSA 0,5/ 8-2,5-Z

得捷:
TERM BLOCK 8POS 45DEG 2.5MM PCB

艾睿:
Connecting one or more circuits together, this spring cage 1990067 PCB terminal block from Phoenix Contact is a must-have! This is a 1-row connector. Its pitch is 2.5 mm. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 21.5 mm long, 13.1 mm tall and 12 mm deep. Its wire is 20-24 AWG.

Allied Electronics:
Conn; Term Blk; PCB; Spring Cage; 8; 2.5 mm; 45 Deg; 24-20 AWG; 2A; 300V; Solder

Verical:
Conn PC Terminal Block 8 POS 2.5mm Solder Thru-Hole 2A

MASTER:
PCB terminal block - nominal current: 2 A - rated voltage III/2: 250 V - nominal cross section: 0.5 mm² - pitch: 2.5 mm - number of positions: 8 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection directi

Online Components:
Conn PC Terminal Block 8 POS 2.5mm Solder Thru-Hole 2A

Electro Sonic:
PCB terminal block - nominal current: 2 A - rated voltage III/2: 250 V - nominal cross section: 0.5 mm² ...
