1984714

Conn; Term Blk; PCB; 12; 3.5mm; Front; 26-16AWG; 10A; 300V; 1.2mm PA

12 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLK 12P SIDE ENT 3.5MM PCB

贸泽:
Fixed Terminal Blocks PT 1.5/12-3.5H 12P HRZ 3.5mm SCREW

艾睿:

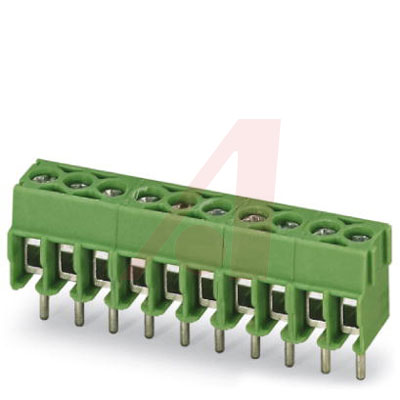

This 1984714 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a straight body orientation. 1984714 is housed in polyamide. This device has a maximum current rating of 17.5 A. Its wire is 16-26 AWG. It uses the solder termination method. This product is 42 mm long, 9.2 mm tall and 7.6 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; 12; 3.5 mm; Front; 26-16 AWG; 10 A; 300 V; 1.2 mm PA

Verical:
Conn PC Terminal Block 12 POS 3.5mm Solder ST Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 12 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB con

Online Components:
Conn Terminal Block 12 POS 3.5mm Solder ST Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
