1729128

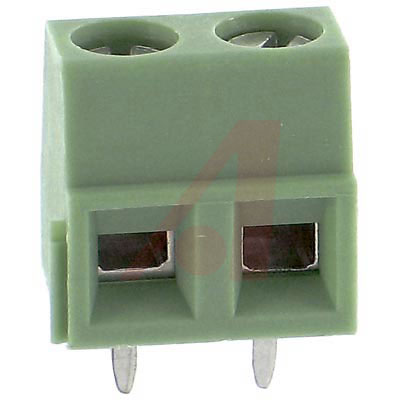

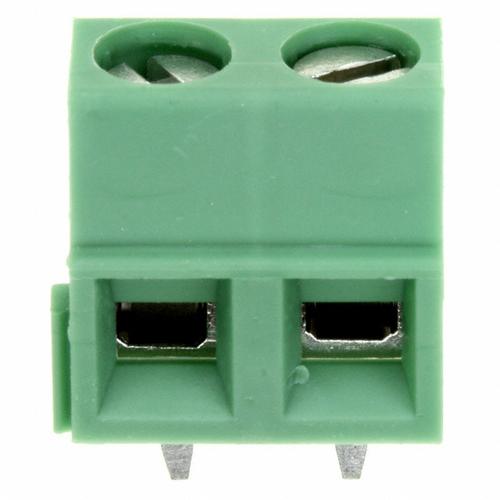

PHOENIX CONTACT  1729128  线至板接线端子, 2 路, 250 V, 13.5 A, 26 AWG, 16 AWG, 1.5 mm²

Contact COMBICON MKDSN 5.08mm 薄型印刷电路板端子块

Professional range of Phoenix Contact MKDSN Series 5.08 mm pitch terminal blocks offering various different positions

Various positions available

5.08 mm pitch

Colour: Green

得捷:
TERM BLK 2P SIDE ENT 5.08MM PCB

欧时:
Phoenix Contact MKDSN 系列 1729128 2 路 无熔丝端子块, 通孔, 焊接端接, 30 → 14 AWG线规格, 13.5A

立创商城:
5.08mm 排数:1 每排P数:2 直针 可拼接

贸泽:
Fixed Terminal Blocks 2P 5.08mm 90DEG

e络盟:
线至板接线端子, 5.08 mm, 2 路, 26 AWG, 16 AWG, 1.5 mm², 螺丝

艾睿:
This pc terminal block 1729128 PCB terminal block manufactured from Phoenix Contact will connect wires together. It has a straight body orientation. It has a maximum voltage rating of 400 V. This is a 1-row connector. Its pitch is 5.08 mm. This device has a maximum current rating of 13.5 A. 1729128 is housed in polyamide. This product is 10.16 mm long, 10 mm tall and 8.1 mm deep. It uses the solder termination method. Its wire is 16-26 AWG.

Allied Electronics:
Block; Terminal; 13.5 A; 250 V; 5.08 mm; 26 to 16 AWG; 2; Screw; Solder; 4 kV

Chip1Stop:
Conn PC Terminal Block 2 POS 5.08mm Solder ST Thru-Hole 13.5A

Verical:
Conn PC Terminal Block 2 POS 5.08mm Solder ST Thru-Hole 13.5A Cardboard

Newark:
# PHOENIX CONTACT  1729128  Wire-To-Board Terminal Block, 5.08 mm, 2 Positions, 26 AWG, 16 AWG, 1.5 mm², Screw

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 3.5 mm

Online Components:
Conn PC Terminal Block 2 POS 5.08mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
