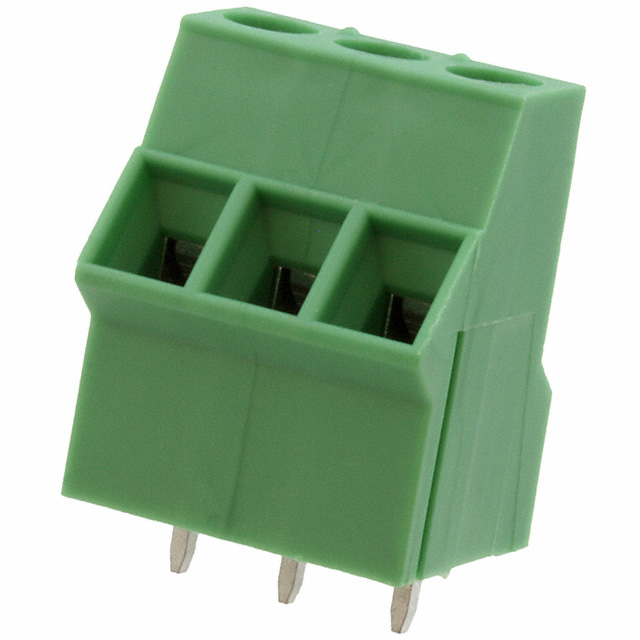

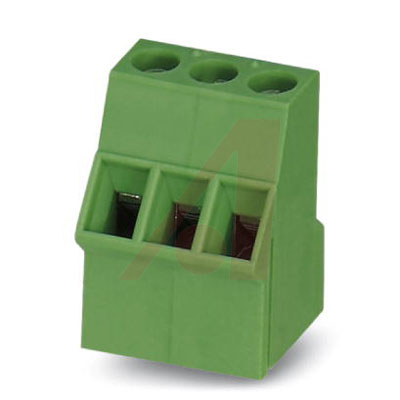

固定接线端子 3P 5.08mm 40DEG
3 接线板 - 线至板 40°（130°）角度，带板 0.200"（5.08mm） 通孔
得捷:
TERM BLOCK 3POS 40DEG 5.08MM PCB
欧时:
PCB terminal block
贸泽:
固定接线端子 3P 5.08mm 40DEG
艾睿:
Need to ensure strong connections between circuits? This 1705472 PCB terminal block from Phoenix Contact will do just that! This is a 1-row connector. It has a straight body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 300 V. 1705472 is housed in polyamide. This device has a maximum current rating of 10 A. It uses the solder termination method. This product is 15.24 mm long, 19.4 mm tall and 14.25 mm deep. Its wire is 14-26 AWG.
Allied Electronics:
PC TERMINAL BLOCK, PITCH: 5.08 MM, POS 3
Verical:
Conn PC Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 20A Cardboard
MASTER:
PCB terminal block - nominal current: 20 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5.08 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conne
Online Components:
Conn PC Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 20A
Electro Sonic:
PCB terminal block - nominal current: 20 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
