1988888

固定接线端子 PTA 1.5/10-5.0

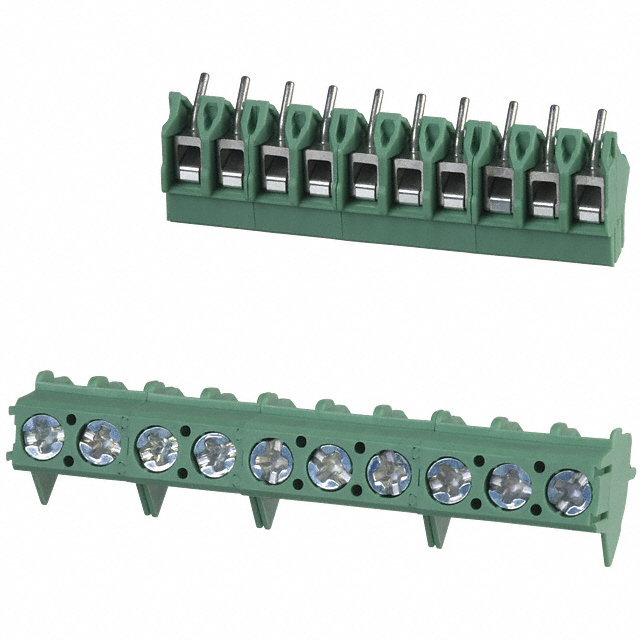

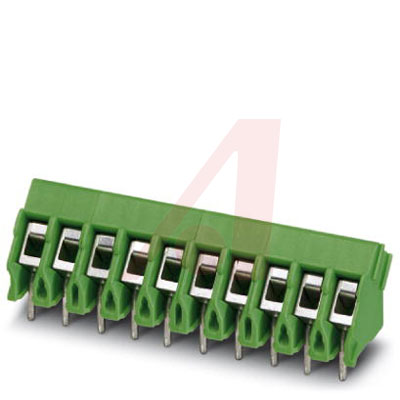

** Contact COMBICON PTA 5.0mm PCB Terminal Blocks**

Professional 5 mm pitch Phoenix Contact screw terminals from the PTA series.

得捷:
TERM BLOCK 10POS 45DEG 5MM PCB

贸泽:
固定接线端子 PTA 1.5/10-5.0

艾睿:
Phoenix Contact&s;s pc terminal block 1988888 PCB terminal block will ensure strong connections between circuits. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 5 mm. This device has a maximum current rating of 17.5 A. 1988888 is housed in polyamide. Its wire is 14-26 AWG. It uses the solder termination method. This product is 50 mm long, 11.9 mm tall and 12.8 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 10; 5 mm; 45 Deg; 26-14 AWG; Green; 10 A; 160 V

Verical:
Conn PC Terminal Block 10 POS 5mm Solder Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 10 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB conne

Online Components:
Conn PC Terminal Block 10 POS 5mm Solder Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
