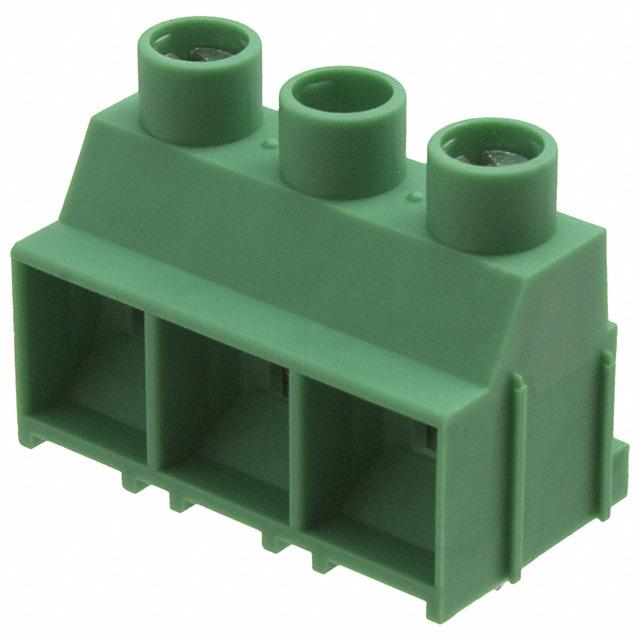

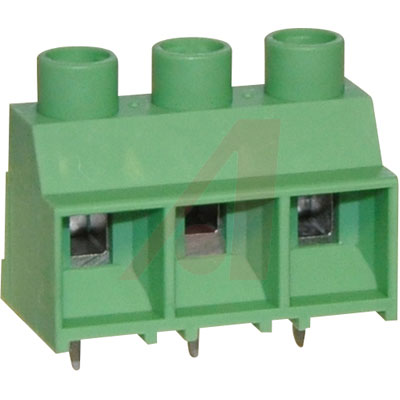

1904150

Phoenix Contact 9.52mm COMBICON MKDS 5 300V 高电压系列印刷电路板端子块9.52mm 节距 COMBICON MKDS 5 系列 300V 高电压印刷电路板水平安装端子块，具有 0.2 至 6（实心）和 0.2 至 4（绞合）mm2 螺钉连接。 这些 9.52mm COMBICON MKDS 5 系列印刷电路板端子块具有增强的空气和漏电距离，使用线性引脚并具有 300 V UL 认证。 2 位置和 3 位置端子块基座可灵活配置。 有关螺丝刀，请参见库存号 390-9641### 认可UL### Phoenix Contact COMBICON 9.52mm 节距印刷电路板端子块

Contact 9.52mm COMBICON MKDS 5 300V 高电压系列印刷电路板端子块

9.52mm 节距 COMBICON MKDS 5 系列 300V 高电压印刷电路板水平安装端子块，具有 0.2 至 6（实心）和 0.2 至 4（绞合）mm2 螺钉连接。 这些 9.52mm COMBICON MKDS 5 系列印刷电路板端子块具有增强的空气和漏电距离，使用线性引脚并具有 300 V UL 认证。 2 位置和 3 位置端子块基座可灵活配置。

有关螺丝刀，请参见库存号 390-9641

### 认可

UL

### Phoenix Contact COMBICON 9.52mm 节距印刷电路板端子块

欧时:
MKDS 5 HV /3-9,52 3way 9.52mm

得捷:
TERM BLK 3P SIDE ENT 9.53MM PCB

艾睿:

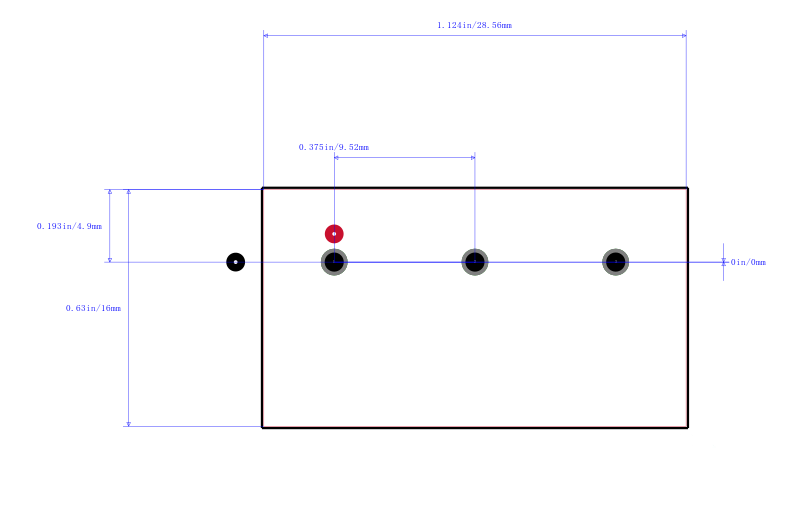

When you implement this pc terminal block 1904150 PCB terminal block from Phoenix Contact, you will get the best connections results for your circuit! This is a 1-row connector. Its pitch is 9.52 mm. It has a maximum voltage rating of 800 V. It has a straight body orientation. This device has a maximum current rating of 32 A. 1904150 is housed in polyamide. This product is 28.56 mm long, 21.5 mm tall and 16 mm deep. Its wire is 10-24 AWG. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; ScrewCg; 3Poles; 9.52mmPitch; FrontEntry; GN; 30-10AWG; 32A; 1000V

Chip1Stop:
Conn PC Terminal Block 3 POS 9.52mm Solder ST Thru-Hole 32A

Verical:
Conn PC Terminal Block 3 POS 9.52mm Solder ST Thru-Hole 32A

MASTER:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 1000 V - nominal cross section: 4 mm² - pitch: 9.52 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 3 POS 9.52mm Solder ST Thru-Hole 32A

Electro Sonic:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 1000 V - nominal cross section: 4 mm² ...
