1714971

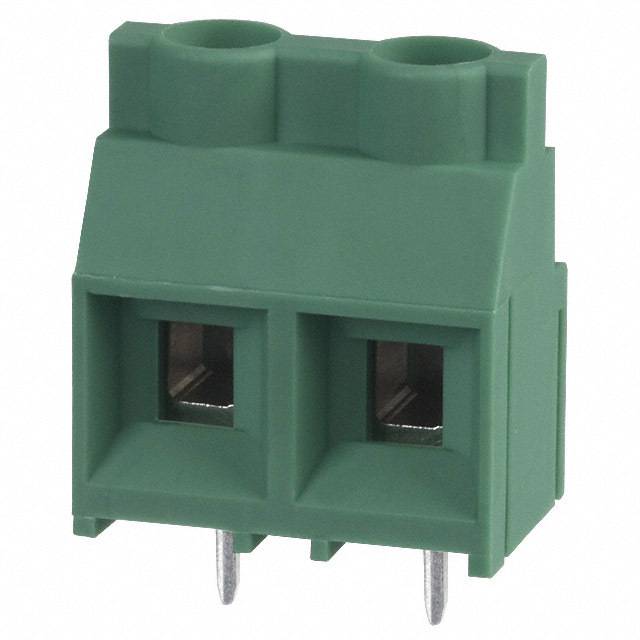

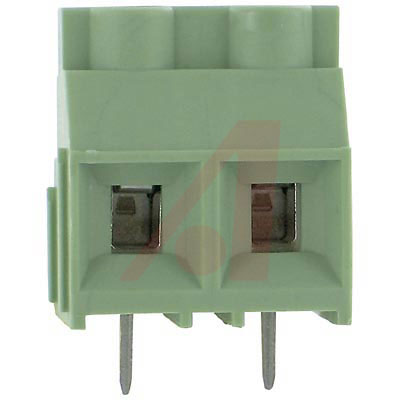

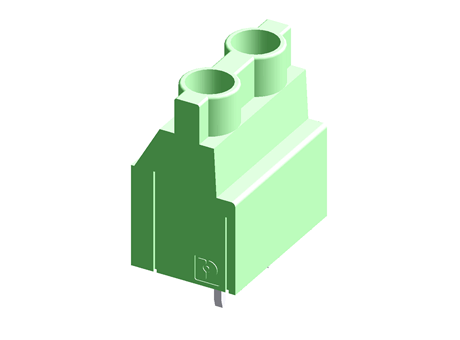

PHOENIX CONTACT  1714971  线至板接线端子, 2 路, 1 kV, 32 A, 24 AWG, 10 AWG, 6 mm²

Contact 9.52mm COMBICON MKDS 5 系列印刷电路板端子块

9.52mm 节距 COMBICON MKDS 5 系列印刷电路板垂直通孔安装端子块，具有 6mm2 突起笼形夹螺钉连接。 这些 9.52mm MKDS 5 系列印刷电路板端子块提供 2 和 3 位置基座，用于多用途配置。 库存号 803-0611 和 803-0602 具有防旋转引脚。

有关螺丝刀，请参见 390-9641

### Phoenix Contact COMBICON 9.52mm 节距印刷电路板端子块

得捷:
TERM BLK 2P SIDE ENT 9.53MM PCB

欧时:
MKDS 5/2-9,5 2way 9.52mm terminal block

立创商城:
9.52mm 排数:1 每排P数:2 直针 可拼接

e络盟:
线至板接线端子, 9.53 mm, 2 路, 24 AWG, 10 AWG, 6 mm², 螺丝

艾睿:

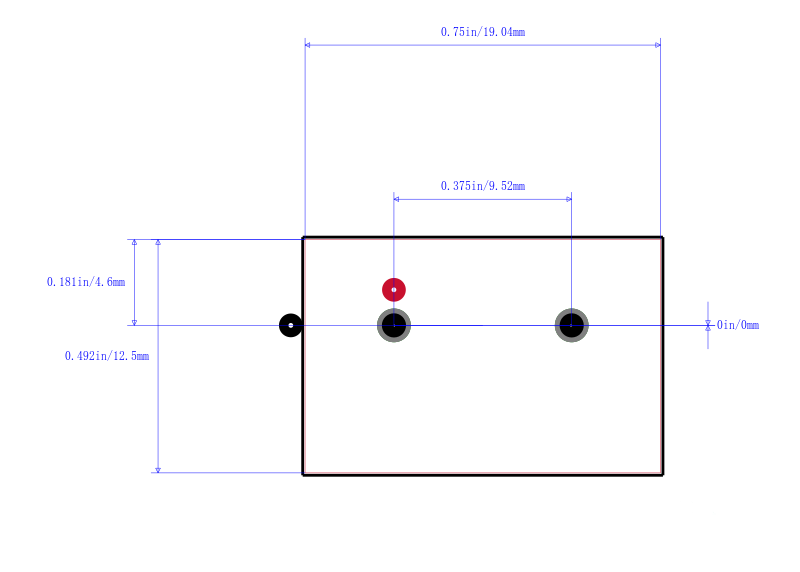

This 1714971 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. It has a straight body orientation. Its pitch is 9.52 mm. It has a maximum voltage rating of 690 V. This is a 1-row connector. This device has a maximum current rating of 32 A. 1714971 is housed in polyamide. This product is 19.04 mm long, 21.5 mm tall and 12.5 mm deep. It uses the solder termination method. Its wire is 10-24 AWG.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 2; 9.5 mm; Front; 24-10 AWG; 32 A; 690 V; Solder

Verical:
Conn Terminal Block 2 POS 9.52mm Solder ST Thru-Hole 32A

Newark:
# PHOENIX CONTACT  1714971  Wire-To-Board Terminal Block, 9.53 mm, 2 Positions, 24 AWG, 10 AWG, 6 mm², Screw

MASTER:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 1000 V - nominal cross section: 4 mm² - pitch: 9.52 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 2 POS 9.52mm Solder ST Thru-Hole 32A

Electro Sonic:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 1000 V - nominal cross section: 4 mm² ...
