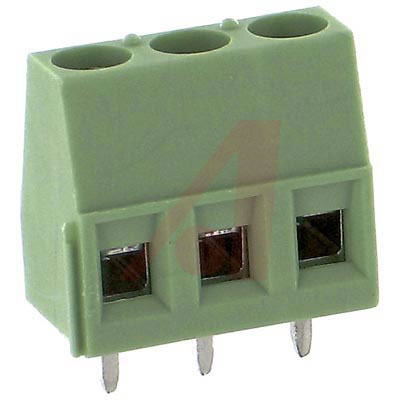

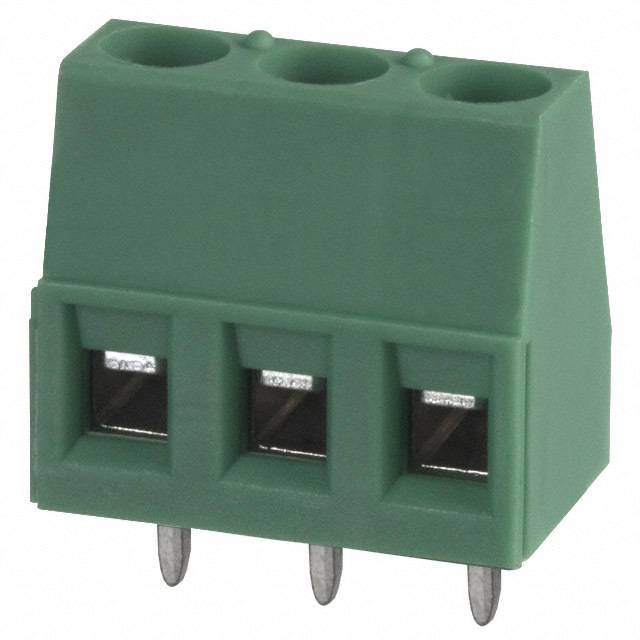

PHOENIX CONTACT  1715734  线至板接线端子, 3 路, 300 V, 15 A, 26 AWG, 14 AWG, 2.5 mm²

Contact COMBICON MKDS 5.08mm 印刷电路板端子块

5.08mm 节距 MKDS 通孔安装印刷电路板端子块，带上升笼形笼式弹簧夹螺钉和侧面联锁。 库存号 804-4991 可将位置号压印在外壳上。

有关螺丝刀，请参见库存号 390-9641

有关插入桥接，请参见库存号 802-0686（2 路）、802-0689（3 路）、802-0683（4 路）、802-0692（5 路）、802-0695（6 路）"

### Features and Benefits

• Well-known connection principle allows worldwide use

• Low temperature rise, thanks to maximum contact force

• Allows connection of two conductors

• Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

• Latching on the side enables various numbers of positions to be combined

• RoHS compliant

### 注

Stock number 804-4991 has the postion number stamped on the housing and 883-2921 is bridged internally.

### 标准

Connection in acc. with standard EN-VDE, V0 Flammability rating according to UL 94, DIN EN 60512-5-2:2003-01.

### 认可

CSA, cRUus, PCT, SEV, CCA,
