1729047

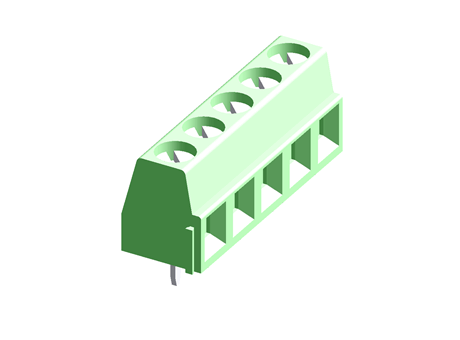

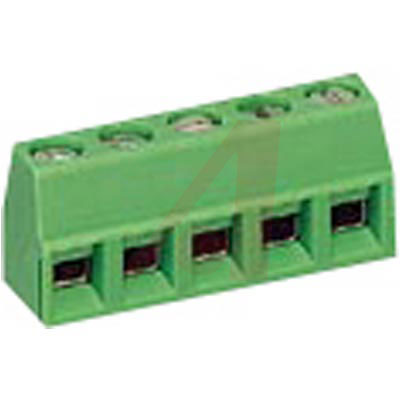

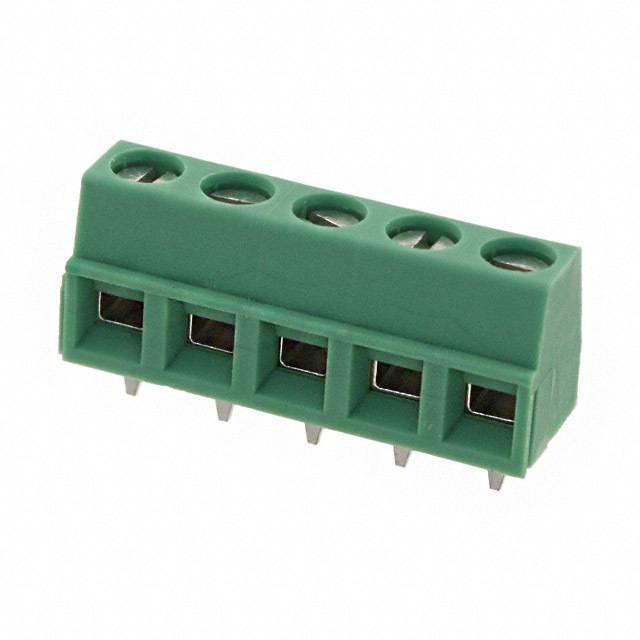

Phoenix Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.Various positions available 5.0 mm pitch Colour: Green ### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块

Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块

Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.

Various positions available

5.0 mm pitch

Colour: Green

### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块

欧时:
Low profile PCB terminal block,5mm,5 way

得捷:
TERM BLK 5POS SIDE ENTRY 5MM PCB

艾睿:
When you implement this pc terminal block 1729047 PCB terminal block from Phoenix Contact, you will get the best connections results for your circuit! This is a 1-row connector. It has a straight body orientation. Its pitch is 5 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 13.5 A. 1729047 is housed in polyamide. It uses the solder termination method. Its wire is 16-26 AWG. This product is 25 mm long, 10 mm tall and 8.1 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 5; 5 mm; Front; 26-16 AWG; 13.5 A; 250 V; Solder

Verical:
Conn PC Terminal Block 5 POS 5mm Solder ST Thru-Hole 13.5A

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 5 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 5 POS 5mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
