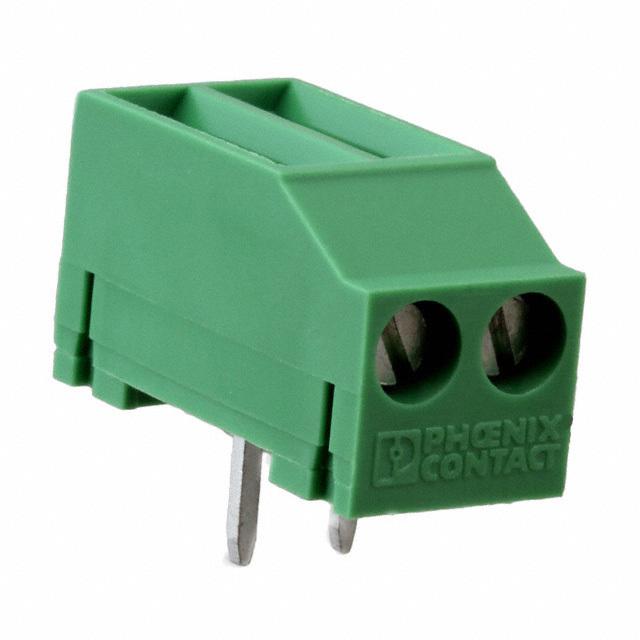

Conn PC Terminal Block F 2POS 5mm Solder RA Thru-Hole 24A
2 接线板 - 线至板 垂直，带板 0.197"（5.00mm） 通孔
得捷:
TERM BLK 2POS TOP ENTRY 5MM PCB
艾睿:

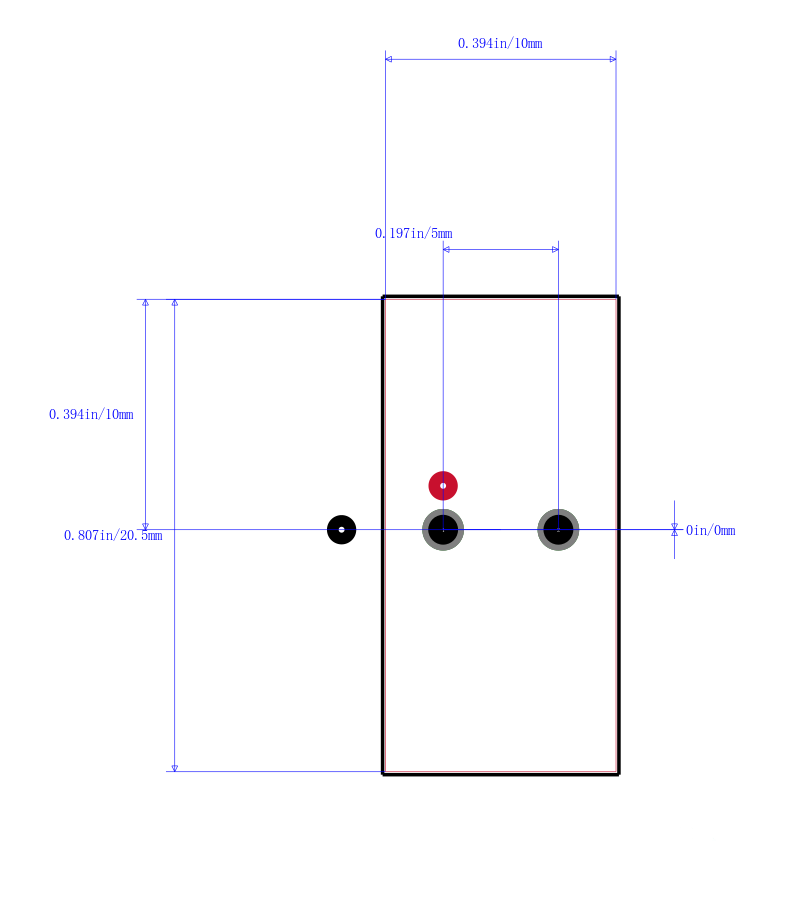

Phoenix Contact&s;s pc terminal block 1771529 PCB terminal block will ensure strong connections between circuits. This F connector has 2 F contacts. It has a maximum voltage rating of 250 V. Its pitch is 5 mm. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 24 A. 1771529 is housed in polyamide. This product is 10 mm long, 11.7 mm tall and 20.5 mm deep. It uses the solder termination method. Its wire is 12-24 AWG.
Verical:
Conn PC Terminal Block F 2 POS 5mm Solder RA Thru-Hole 24A Cardboard
MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti
Online Components:
Conn PC Terminal Block F 2 POS 5mm Solder RA Thru-Hole 24A
Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
