1751277

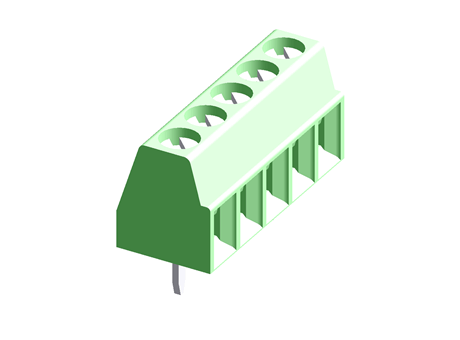

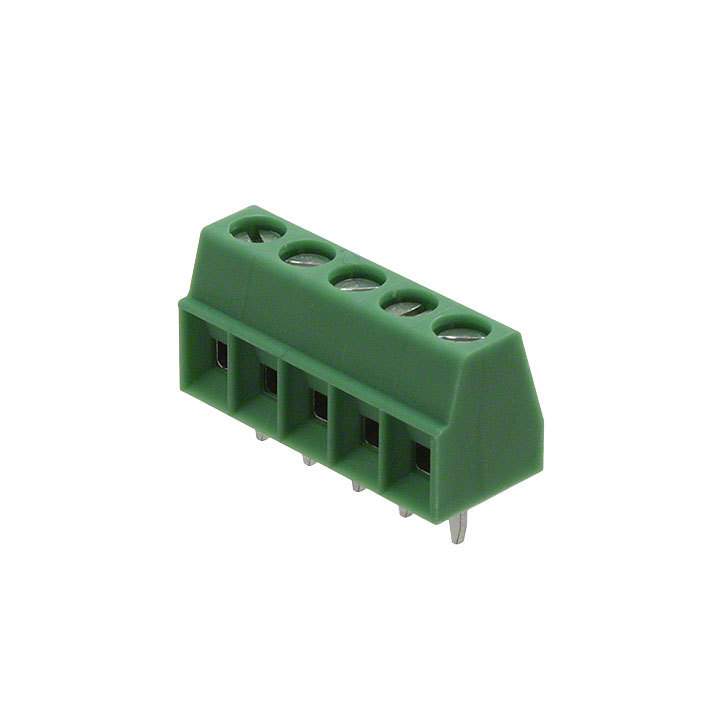

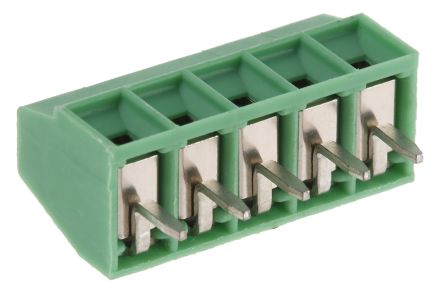

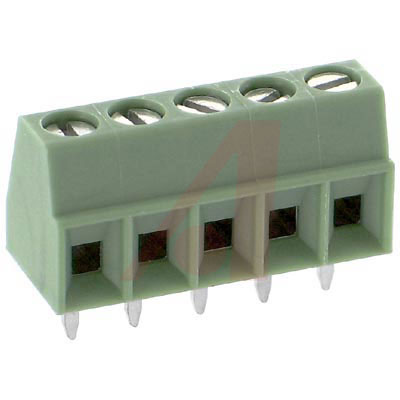

Phoenix Contact COMBICON MKDS 3.5 mm 印刷电路板端子块专业 Phoenix Contact MKDS 系列线对板 3.5 mm 节距连接器3.5mm 节距 螺钉连接 28 - 16 无线量规量程 绿色 ### Phoenix Contact COMBICON 3.5mm 印刷电路板端子块

Contact COMBICON MKDS 3.5 mm 印刷电路板端子块

专业 Phoenix Contact MKDS 系列线对板 3.5 mm 节距

3.5mm 节距

螺钉连接

28 - 16 无线量规量程

绿色

得捷:
TERM BLK 5POS SIDE ENT 3.5MM PCB

欧时:
PCB terminal block, 3.5mm pitch, 5 way

贸泽:
Fixed Terminal Blocks 5P 3.5mm 90DEG

艾睿:

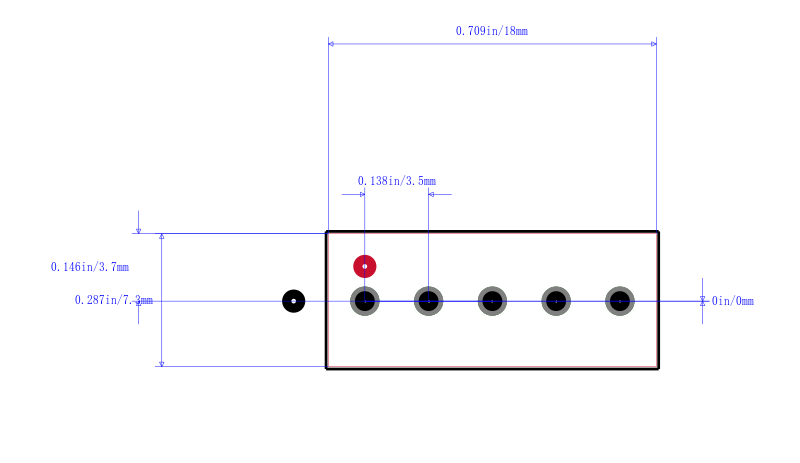

Ideal for testing purposes this 1751277 PCB terminal block manufactured from Phoenix Contact will exceed your needs. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 200 V. Its pitch is 3.5 mm. This device has a maximum current rating of 13.5 A. 1751277 is housed in polyamide. Its wire is 16-26 AWG. It uses the solder termination method. This product is 18 mm long, 8.5 mm tall and 7.3 mm deep.

Allied Electronics:
Terminal Block; 10 A; 160 V; 3.5 mm; 26 to 16 AWG; 5; Screw; Solder; 2.5 kV; PA

Verical:
Conn PC Terminal Block 5 POS 3.5mm Solder ST Thru-Hole 13.5A

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 5 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conn

Online Components:
Conn PC Terminal Block 5 POS 3.5mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
