1711042

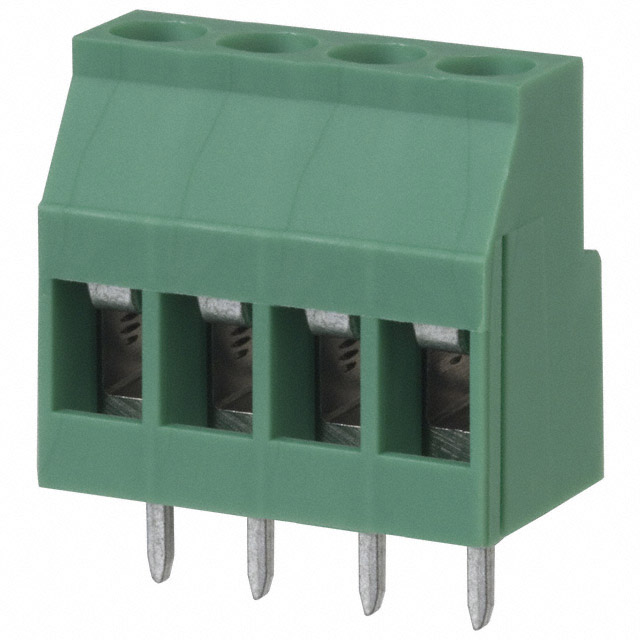

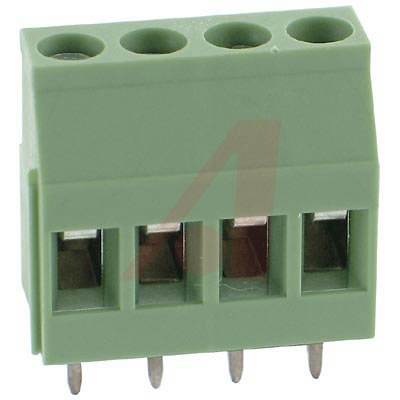

Conn Terminal Block 4POS 5mm Solder ST Thru-Hole 28A

4 接线板 - 线至板 水平，带板 0.197"（5.00mm） 通孔

欧时:
MINI-CONNECTOR

得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB

贸泽:
Fixed Terminal Blocks 4P 5mm 90DEG

艾睿:
Perfect for troubleshooting this 1711042 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 28 A. 1711042 is housed in polyamide. Its wire is 12-24 AWG. This product is 20 mm long, 18 mm tall and 11.2 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 4; 5 mm; front; 24-12 AWG; 24 A; 250 V; Solder

Verical:
Conn PC Terminal Block 4 POS 5mm Solder ST Thru-Hole 24A Cardboard

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 4 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti

Online Components:
Conn Terminal Block 4 POS 5mm Solder ST Thru-Hole 28A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
