1721346

EG 设备外壳此标准、空 EG 45 mm 外壳设计用于接受各种专业工业电子设备。 它可通过闭锁到对称轮廓快速安装，符合 EN 50022 标准。 此外，该盒朝向后部的位置具有红色锁定柱组件。 提供很多有关印刷电路板装配的指导资源。 Insulating material: | ABS ---|--- Colour: | green Permitted solid wire cross-section: | 0.2 → 4 mm 2 Permitted flexible wire cross-section: | 0.2 → 2.5 mm2 Number of poles: | 16 Enclosure dimensions mm: | 105 x 75 x 45 Stock |   ---|--- no. | description 192-2822 | Empty housing 192-2838 | Envelope for header 192-2866 | Standard terminal 5.0 mm gauge 2 poles 192-2872 | Standard terminal 5.0 mm gauge 3 poles 192-2844 | Miniconnec header 5.0 mm gauge 192-2850 | Miniconnec connectors 5.0 mm gauge ### 插入式和 DIN 导轨安装外壳

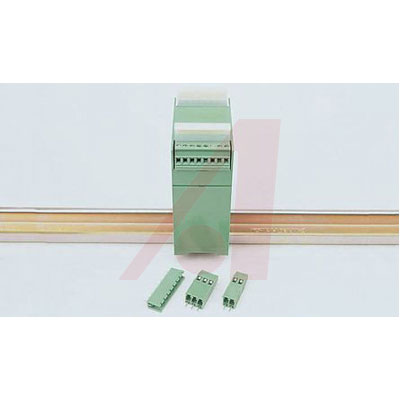

空 EG 设备外壳

此标准、空 EG 45 mm 外壳设计用于接受各种专业工业电子设备。

它可通过闭锁到对称轮廓快速安装，符合 EN 50022 标准。

此外，该盒朝向后部的位置具有红色锁定柱组件。

提供很多有关印刷电路板装配的指导资源。

得捷:

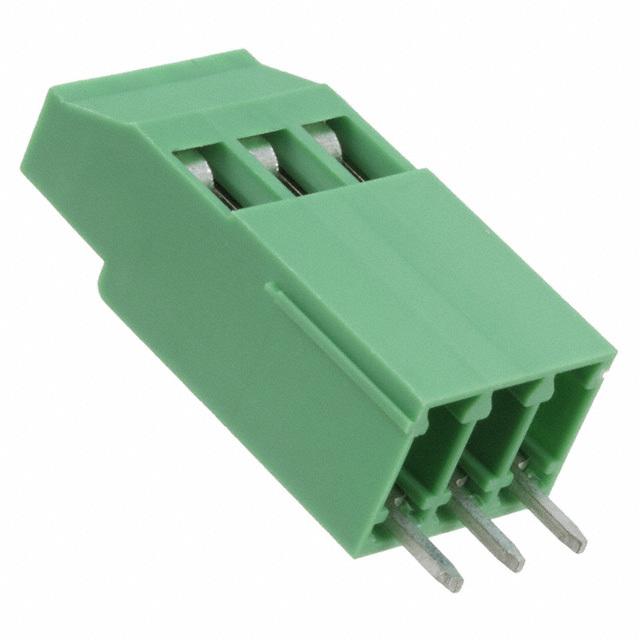

TERM BLK 3POS SIDE ENTRY 5MM PCB

欧时:
1721346 - Phoenix Contact 菲尼克斯 MKKDSH 系列 绿色 标准 Din 导轨接线端子

贸泽:
固定接线端子 3P 5mm

艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1721346 PCB terminal block. It has a straight body orientation. It has a maximum voltage rating of 400 V. This is a 1-row connector. Its pitch is 5 mm. 1721346 is housed in polyamide. This device has a maximum current rating of 24 A. This product is 15 mm long, 31.5 mm tall and 11.1 mm deep. Its wire is 12-24 AWG. It uses the solder termination method.

Allied Electronics:
Standard DIN Rail Terminal, MKKDSH Series, 250V, 24A, Solder Term, Green, Single Level

Verical:
Conn PC Terminal Block 3 POS 5mm Solder ST Thru-Hole 24A

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti

Online Components:
Conn Terminal Block 3 POS 5mm Solder ST Thru-Hole 24A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
