1729209

Phoenix Contact COMBICON MKDSN 5.08mm 薄型印刷电路板端子块Professional range of Phoenix Contact MKDSN Series 5.08 mm pitch terminal blocks offering various different positionsVarious positions available 5.08 mm pitch Colour: Green ### Phoenix Contact COMBICON 5.08mm 印刷电路板端子块高质量印刷电路板安装螺旋端子，有垂直、55 ° 或双层模件几种类型。 标准、薄型和高电流型号都提供 2 路或 3 路外壳，可侧面堆叠到 30 路。 所有标准和薄型型号都可接受最大 1.5mm² 的导线，高电流型则可接受最大 4mm² 的导线。 这一系列包含铜合金夹持部件，提供连续可靠的螺钉连接，其设计可以保证铜导线不用预处理也能被夹住。 此外还提供标示标签以便识别端子。 功能强大的上升箝位技术 额定电压 250V 高铜含量 >85% 提供优秀的耐蚀性、低触点电阻，并能实际上消除热膨胀 大型 3 毫米铜合金螺丝 ### 认可UL E60425; CSA LR13631

Contact COMBICON MKDSN 5.08mm 薄型印刷电路板端子块

Professional range of Phoenix Contact MKDSN Series 5.08 mm pitch terminal blocks offering various different positions

Various positions available

5.08 mm pitch

Colour: Green

欧时:

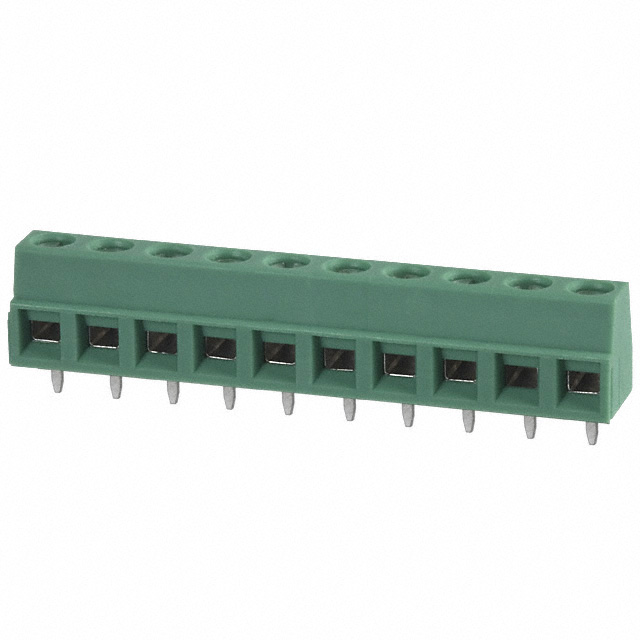

Phoenix Contact MKDSN 系列 1729209 10 路 无熔丝端子块, 通孔, 焊接端接, 26 → 16 AWG线规格, 13.5A

得捷:
TERM BLK 10P SIDE ENT 5.08MM PCB

艾睿:
Create a bridge between two sides of a circuit by implementing this pc terminal block 1729209 PCB terminal block from Phoenix Contact. This is a 1-row connector. Its pitch is 5.08 mm. It has a straight body orientation. It has a maximum voltage rating of 250 V. 1729209 is housed in polyamide. This device has a maximum current rating of 13.5 A. Its wire is 16-26 AWG. It uses the solder termination method. This product is 50.8 mm long, 10 mm tall and 8.1 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 10; 5.08 mm; Front; 26-16 AWG; 13.5 A; 250 V; Solder

Verical:
Conn PC Terminal Block 10 POS 5.08mm Solder ST Thru-Hole 13.5A

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 10 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB co

Online Components:
Conn PC Terminal Block 10 POS 5.08mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
