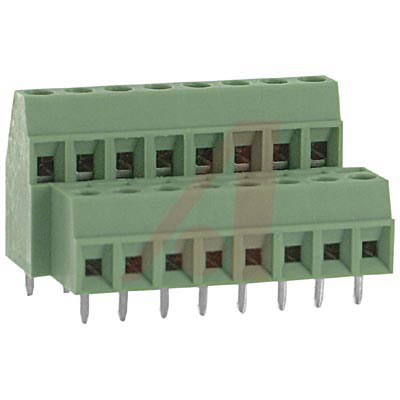

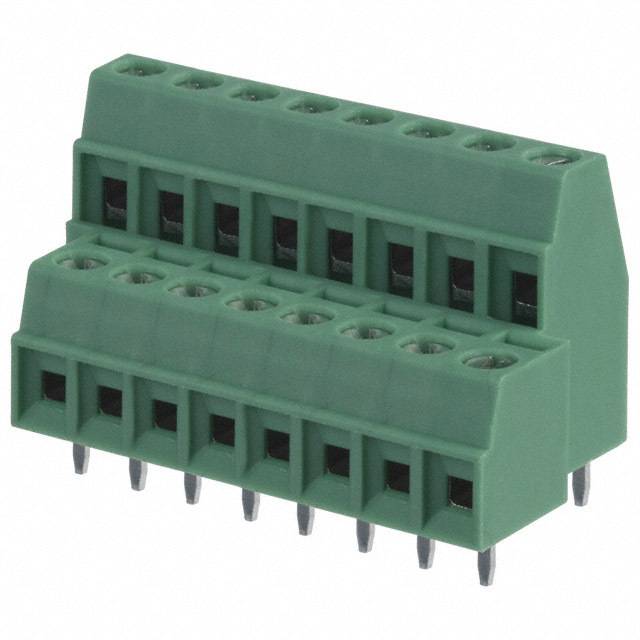

1708084

Conn PC Terminal Block 16POS 3.81mm Solder ST Thru-Hole 10A

8 A Nominal Current, 3.81 mm Pitch, Screw Connection Type, Printed Circuit Terminal Block

Compact design with a reliable connection technique for industrial printed circuit boards.

* Polyamide Insulating Material

* Voltage: 300, Amps: 10, AWG: 30-16

* Screw Connection Blocks

* Temperature Limits: 40°C

得捷:
TERM BLK 8P SIDE ENT 3.81MM PCB

艾睿:
Need to ensure strong connections between circuits? This pc terminal block 1708084 PCB terminal block from Phoenix Contact will do just that! It has a straight body orientation. It has a maximum voltage rating of 160 V. Its pitch is 3.81 mm. This is a 2-row connector. This device has a maximum current rating of 10 A. 1708084 is housed in polyamide. This product is 32.43 mm long, 16.2 mm tall and 16.3 mm deep. Its wire is 16-26 AWG. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 8; 3.81mm; Front; 26-16 AWG; 8 A; 160 V; Solder

Verical:
Conn PC Terminal Block 16 POS 3.81mm Solder ST Thru-Hole 8A Cardboard

MASTER:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² - pitch: 3.81 mm - number of positions: 8 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti

Online Components:
Conn PC Terminal Block 16 POS 3.81mm Solder ST Thru-Hole 10A

Electro Sonic:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
