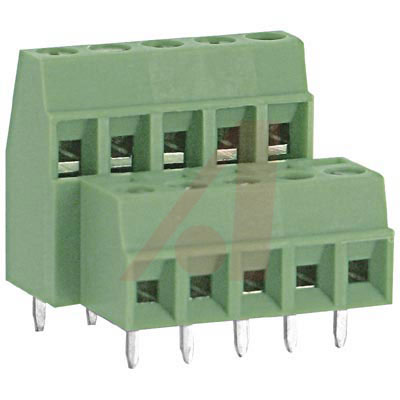

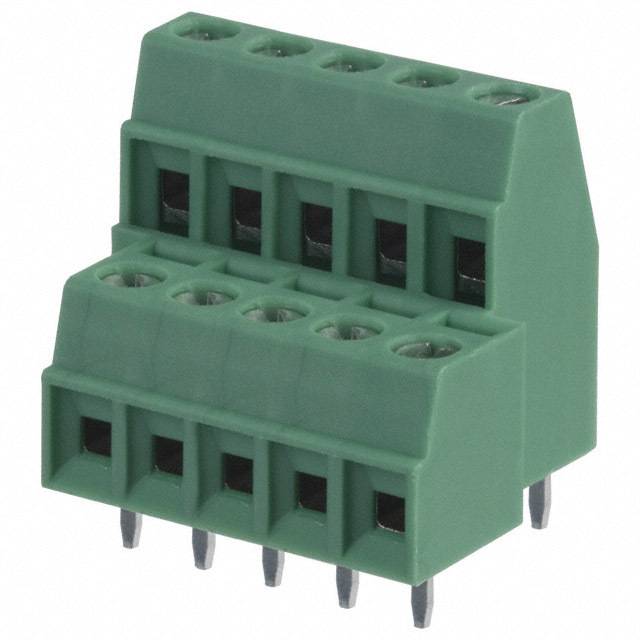

Conn PC Terminal Block 10POS 3.81mm Solder ST Thru-Hole 8A
5 接线板 - 线至板 水平,带板 0.150"(3.81mm) 通孔
得捷:
TERM BLK 5P SIDE ENT 3.81MM PCB
艾睿:
Join your electrical circuits and ensure strong connections with this pc terminal block 1708055 PCB terminal block from Phoenix Contact. Its pitch is 3.81 mm. It has a maximum voltage rating of 200 V. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 8 A. 1708055 is housed in polyamide. It uses the solder termination method. This product is 21 mm long, 16.2 mm tall and 16.3 mm deep. Its wire is 16-26 AWG.
Allied Electronics:
Conn; Term Blk; PCB; Screw; 5; 3.81mm; Front; 26-16 AWG; 8 A; 160 V; Solder
Verical:
Conn PC Terminal Block 10 POS 3.81mm Solder ST Thru-Hole 8A
MASTER:
Conn PC Terminal Block 10 POS 3.81mm Solder ST Thru-Hole 8A
Online Components:
Conn PC Terminal Block 10 POS 3.81mm Solder ST Thru-Hole 8A
Electro Sonic:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
触点数 10
线规 16AWG ~ 30AWG
额定电流 8 A
排数 2
电路数 10
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 8 A
额定电压Max 200 V
额定电压 160 V
工作电压Max 200 V
安装方式 Through Hole
引脚间距 3.81 mm
长度 16.3 mm
宽度 16.3 mm
高度 16.2 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
绝缘材质 Nylon
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
