1724013

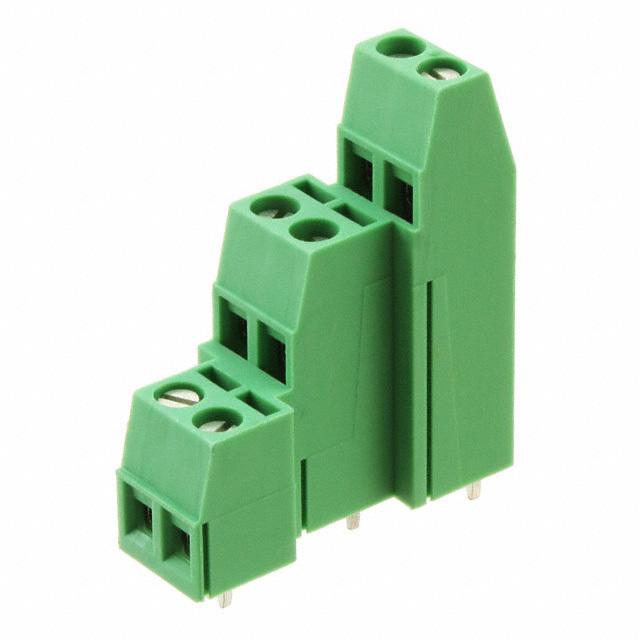

Phoenix Contact COMBICON MK3DS 5.08mm 三层印刷电路板端子块### Phoenix Contact COMBICON 5.08mm 印刷电路板端子块高质量印刷电路板安装螺旋端子，有垂直、55 ° 或双层模件几种类型。 标准、薄型和高电流型号都提供 2 路或 3 路外壳，可侧面堆叠到 30 路。 所有标准和薄型型号都可接受最大 1.5mm² 的导线，高电流型则可接受最大 4mm² 的导线。 这一系列包含铜合金夹持部件，提供连续可靠的螺钉连接，其设计可以保证铜导线不用预处理也能被夹住。 此外还提供标示标签以便识别端子。 功能强大的上升箝位技术 额定电压 250V 高铜含量 >85% 提供优秀的耐蚀性、低触点电阻，并能实际上消除热膨胀 大型 3 毫米铜合金螺丝 ### 认可UL E60425; CSA LR13631

Contact COMBICON MK3DS 5.08mm 三层印刷电路板端子块

得捷:
TERM BLK 2P SIDE ENT 5.08MM PCB

欧时:
Phoenix Contact MKKDS 系列 1724013 2 路 无熔丝端子块, 通孔, 焊接端接, 26 → 14 AWG线规格, 17.5A

艾睿:
Say goodbye to wires becoming undone by using this 1724013 PCB terminal block developed by Phoenix Contact. It has a maximum voltage rating of 400 V. Its pitch is 5.08 mm. This is a 3-row connector. It has a straight body orientation. This device has a maximum current rating of 17.5 A. 1724013 is housed in polyamide. This product is 12.7 mm long, 36.6 mm tall and 32.25 mm deep. Its wire is 14-26 AWG. It uses the solder termination method.

Allied Electronics:
Non-Fused Trm Blk, 2Way/Pole, Solder Terminals, 26 to 14AWG Through Hole, Nylon, 250V

Verical:
Conn PC Terminal Block 6 POS 5.08mm Solder ST Thru-Hole 15A

MASTER:
PCB terminal block - nominal current: 15 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conne

Online Components:
Conn PC Terminal Block 6 POS 5.08mm Solder ST Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 15 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
