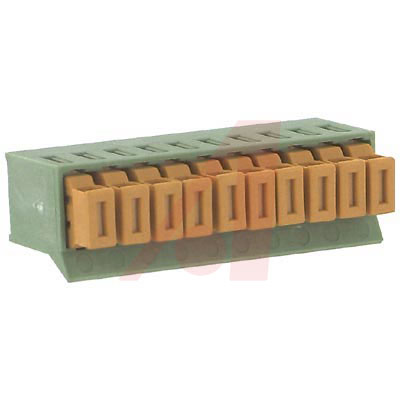

1706251

Conn; Term Blk; PCB; Ins. Displacement; 10; 3.81mm; 26-22AWG; Green; 5A; 160V

10 接线板 - 线至板 水平，带板 0.150"（3.81mm） 通孔

得捷:
TERM BLK 10P SIDE ENT 3.81MM PCB

艾睿:
Need to ensure strong connections between circuits? This 1706251 PCB terminal block from Phoenix Contact will do just that! It has a right angle body orientation. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.81 mm. 1706251 is housed in polyamide. This device has a maximum current rating of 5 A. Its wire is 22-26 AWG. It uses the solder termination method. This product is 39.29 mm long, 14.8 mm tall and 12.4 mm deep.

Allied Electronics:
Block; Terminal; 5 A; 160 V; 3.81 mm; 26 to 22 AWG; 10; Insulation Displacement

Verical:
Conn PC Terminal Block 10 POS 3.81mm Solder RA Thru-Hole 5A

MASTER:
PCB terminal block - nominal current: 5 A - rated voltage III/2: 160 V - nominal cross section: 0.34 mm² - pitch: 3.81 mm - number of positions: 10 - connection method: Displacement connection - mounting: Wave soldering - conductor/PCB connection direct

Online Components:
Conn Terminal Block 10 POS 3.81mm Solder RA Thru-Hole 5A

Electro Sonic:
PCB terminal block - nominal current: 5 A - rated voltage III/2: 160 V - nominal cross section: 0.34 mm² ...
