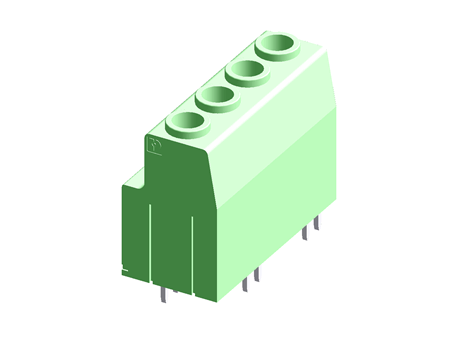

Phoenix Contact COMBICON MKDS 系列 10.16mm 节距 4 路 绿色 印刷电路板接线端子块 1709704, 通孔
Conn PC Terminal Block 4 POS 10.16mm Solder ST Thru-Hole 76A
得捷:
TERM BLK 4P SIDE ENT 10.16MM PCB
欧时:
Phoenix Contact 1709704 COMBICON MKDS 系列 10.16mm 节距 4 路 印刷电路板接线端子块, 通孔, 螺钉端接
立创商城:
10.16mm 排数:1 每排P数:4
艾睿:
Create a bridge between two sides of a circuit by implementing this pc terminal block 1709704 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 800 V. Its pitch is 10.16 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 76 A. 1709704 is housed in polyamide. This product is 40.64 mm long, 30.8 mm tall and 18.7 mm deep. It uses the solder termination method. Its wire is 6-20 AWG.
Chip1Stop:
Conn PC Terminal Block 4 POS 10.16mm Solder ST Thru-Hole 76A
Verical:
Conn PC Terminal Block 4 POS 10.16mm Solder ST Thru-Hole 76A
Online Components:
Conn PC Terminal Block 4 POS 10.16mm Solder ST Thru-Hole 76A
Electro Sonic:
PCB terminal block - nominal current: 76 A - rated voltage III/2: 1000 V - nominal cross section: 10 mm² ...
