1776119-4

Conn Terminal Block F 4POS 5.08mm Solder ST Thru-Hole 10A/Contact

4 接线板 - 线至板 水平，带板 0.200"（5.08mm） 通孔

得捷:
TERM BLK 4P SIDE ENT 5.08MM PCB

艾睿:

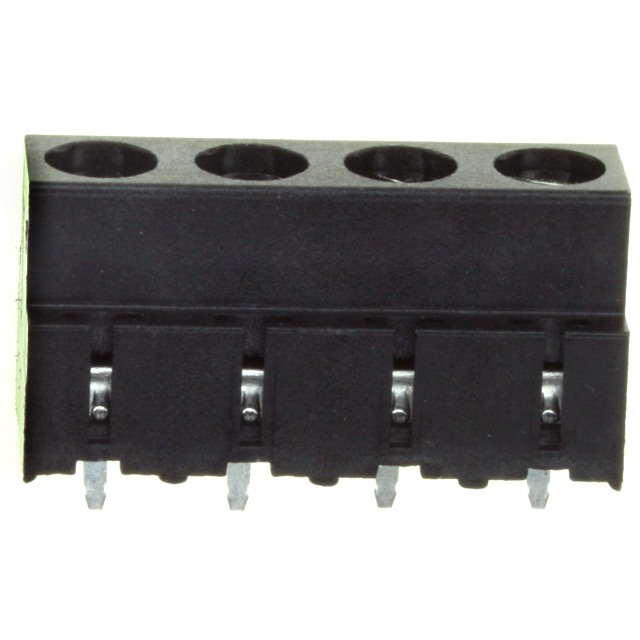

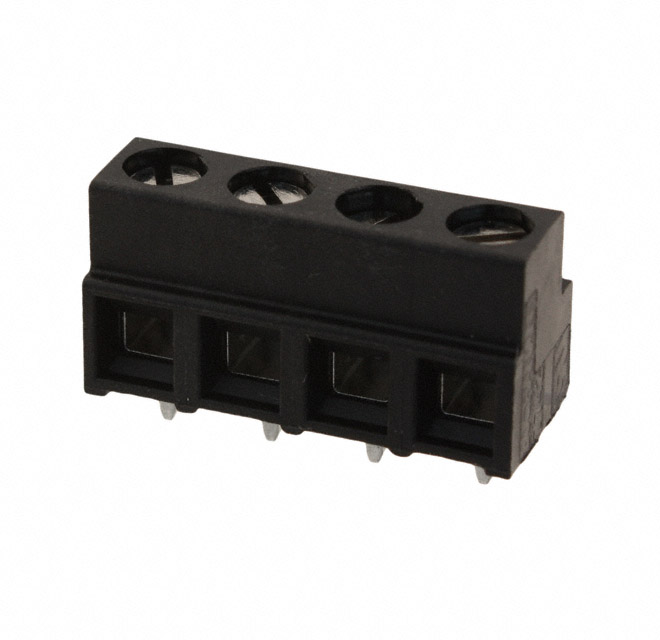

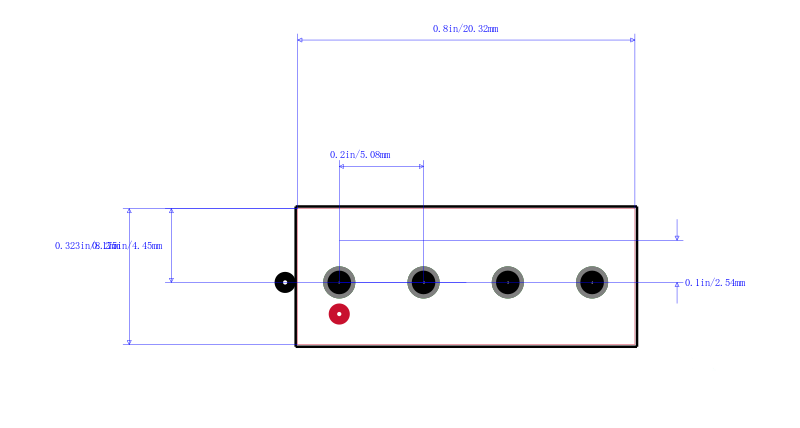

Never worry about wires becoming undone by implementing this eurostyle block 1776119-4 PCB terminal block developed by TE Connectivity. This F connector&s;s 4 contacts that are made out of brass and plated with tin/nickel. It has a maximum voltage rating of 300 VAC. It has a female type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 5.08 mm. 1776119-4 is housed in polyamide. This device has a maximum current rating of 10 A/contact. It uses the solder termination method. This product is 20.32 mm long, 10 mm tall and 8.2 mm deep. Its wire is 15-17 AWG.

安富利:
Conn Terminal Block F 4 POS 5.08mm Solder ST Thru-Hole 10A/Contact

Chip1Stop:
Conn Eurostyle Block F 4 POS 5.08mm Solder ST Thru-Hole 10A/Contact

Verical:
Conn Eurostyle Block F 4 POS 5.08mm Solder ST Thru-Hole 10A/Contact

MASTER:
TERMINAL BLOCK ASSEMBLY, PCB MOUNT, STACKING, SIDE WIRE ENTRY, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
4P TERMI-BLOK,PCB,HIGH TEMP

Electro Sonic:
4P TERMI-BLOK,PCB,HIGH TEMP
