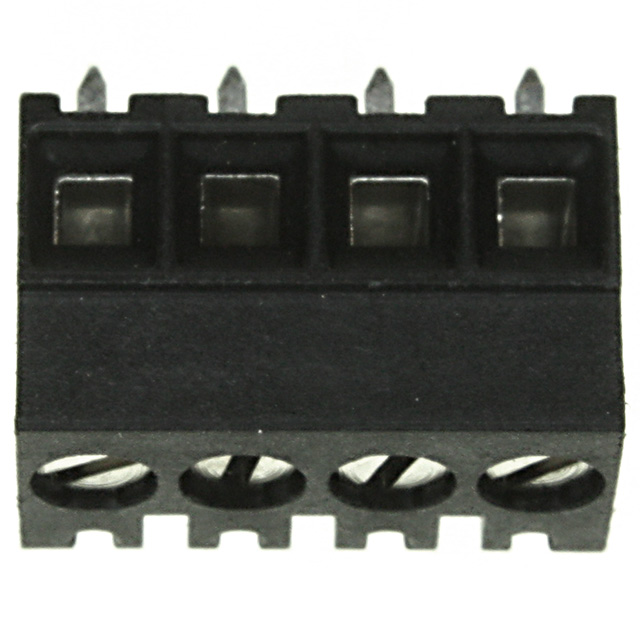

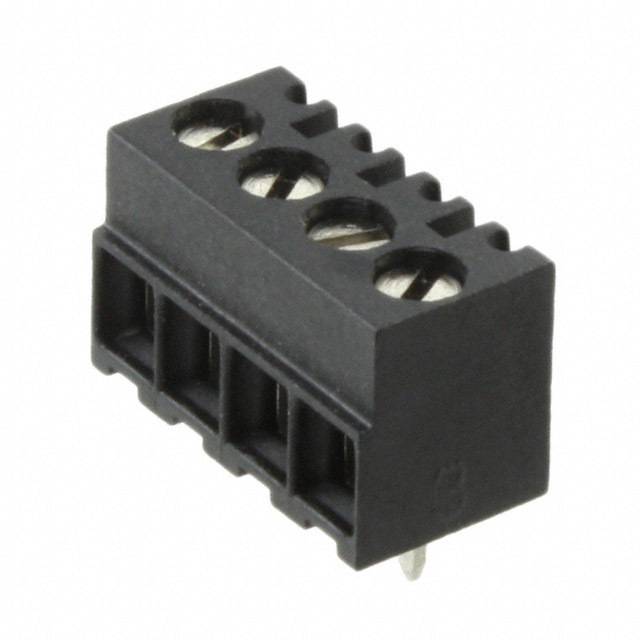

1776112-4

3.5mm 排数:1 每排P数:4

4 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLK 4POS SIDE ENT 3.5MM PCB

立创商城:
3.5mm 排数:1 每排P数:4

艾睿:
This eurostyle block 1776112-4 PCB terminal block manufactured from TE Connectivity will connect wires together. Its pitch is 3.5 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 12 A/contact. 1776112-4 is housed in polyamide. This product is 14 mm long, 8.5 mm tall and 7.3 mm deep. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 16-18 AWG. It uses the solder termination method.

安富利:
Conn Terminal Block 4 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Chip1Stop:
Conn Eurostyle Block 4 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Verical:
Conn Eurostyle Block HDR 4 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Newark:
# AMP - TE CONNECTIVITY  1776112-4  4P,2.60MM,SIDE ENTRY,HIGH TMP New

MASTER:
TERMINAL BLOCK, PCB MOUNT, STRAIGHT, 8.5mm PROFILE, SIDE WIRE ENTRY, 3.5mm PITC

Powell:
Terminal Block Connectors

Online Components:
4P,2.60MM,SIDE ENTRY,HIGH TMP

Electro Sonic:
4P,2.60MM,SIDE ENTRY,HIGH TMP
