1986242-7

固定接线端子 15.0mm Green 7 posn

7 接线板 - 线至板 水平，带板 0.591"（15.00mm） 通孔

得捷:
TERM BLK 7P SIDE ENTRY 15MM PCB

贸泽:
固定接线端子 15.0mm Green 7 posn

艾睿:

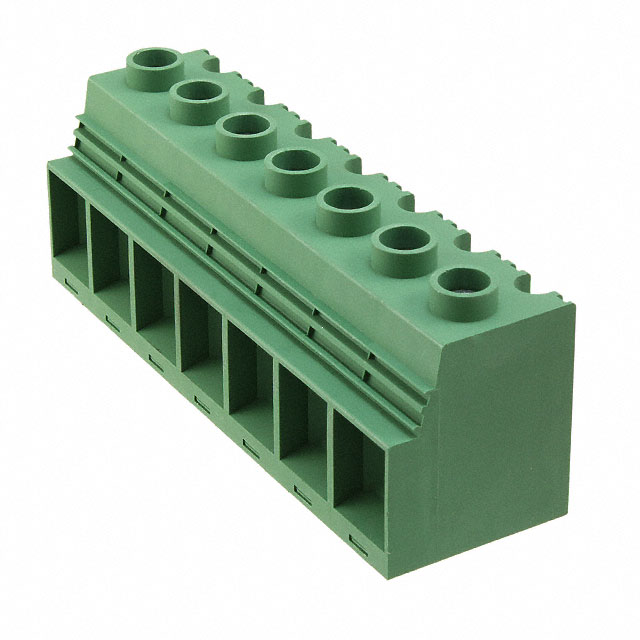

Never worry about wires becoming undone by implementing this 1986242-7 PCB terminal block developed by TE Connectivity. Its pitch is 15 mm. It has a straight body orientation. This is a 7-row connector. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 125 A/contact. 1986242-7 is housed in polyamide 6/6. This product is 105 mm long, 39 mm tall and 31 mm deep. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 1-20 AWG.

安富利:
Conn Terminal Block 7 POS 15mm Solder ST Thru-Hole 125A/Contact

Verical:
Conn Terminal Block HDR 7 POS 15mm Solder ST Thru-Hole 125A/Contact

Newark:
# AMP - TE CONNECTIVITY  1986242-7  POWER CONNECTOR, 15.0MM, GREEN, 7 POSN New

MASTER:
POWER CONNECTOR 15.0mm PITCH

Powell:
Terminal Block Connectors

Online Components:
Power Connector, 15.0mm, Green, 7 posn

Electro Sonic:
Power Connector, 15.0mm, Green, 7 posn
