1-1986712-9

Conn Terminal Block 19POS 5.08mm Solder ST Thru-Hole 16A/Contact

19 接线板 - 线至板 水平，带板 0.200"（5.08mm） 通孔

得捷:
TERM BLK 19P SIDE ENT 5.08MM PCB

贸泽:
Pluggable Terminal Blocks 5.08MM S/E SPRNG 19P SCREWLESS TERM BLOCK

艾睿:

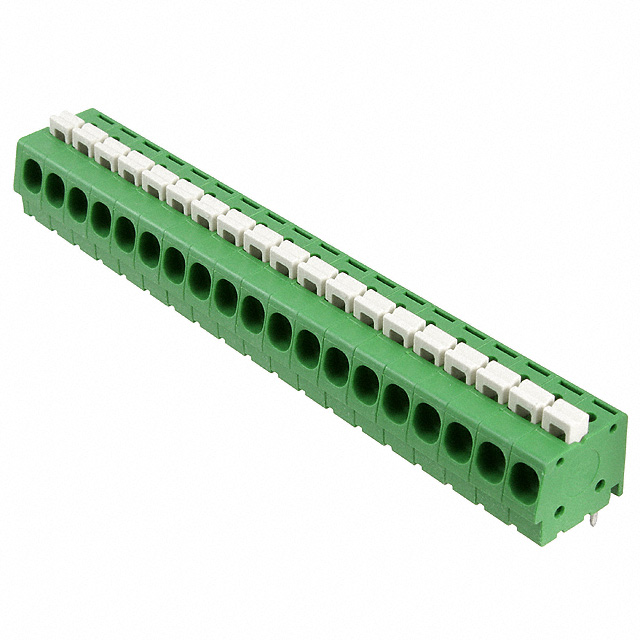

Say goodbye to wires becoming undone by using this 1-1986712-9 PCB terminal block developed by TE Connectivity. This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This device has a maximum current rating of 16 A/contact. 1-1986712-9 is housed in polyamide. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 110 °C. This product is 98.02 mm long, 14.45 mm tall and 14.8 mm deep. Its wire is 12-30 AWG.

安富利:
SCREWLESS, SW,19P,5.08 PCB

Verical:
Conn Terminal Block 19 POS 5.08mm Solder ST Thru-Hole 16A/Contact

Newark:
# AMP - TE CONNECTIVITY  1-1986712-9  SCREWLESS, SW,19P,5.08 PCB New

MASTER:
Conn Terminal Block 19 POS 5.08mm Solder ST Thru-Hole 16A/Contact

Online Components:
SCREWLESS, SW,19P,5.08 PCB

Electro Sonic:
SCREWLESS, SW,19P,5.08 PCB
