固定接线端子 15MM PWR TERM BLK 4P
PWR TB DBL PIN 4P, 15.00 PCB
得捷:
TERM BLK 4P SIDE ENTRY 15MM PCB
贸泽:
固定接线端子 15MM PWR TERM BLK 4P
艾睿:

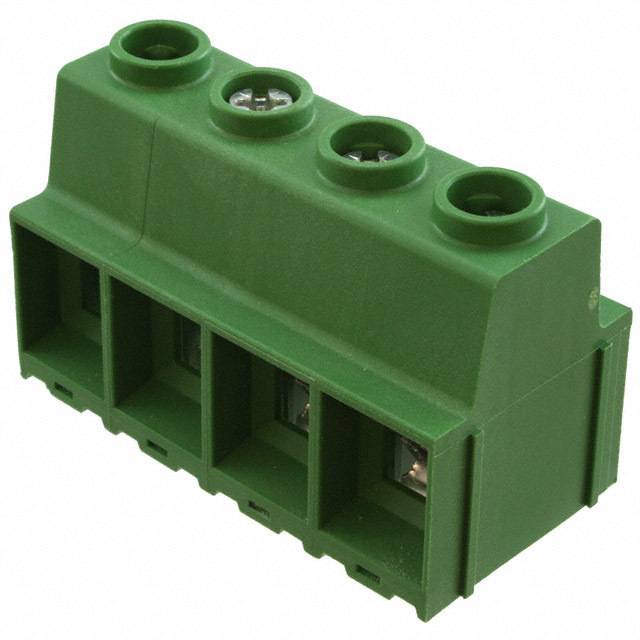

This 1986713-4 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. It has a straight body orientation. Its pitch is 15 mm. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. This device has a maximum current rating of 130 A/contact. 1986713-4 is housed in polyamide. It uses the solder termination method. Its wire is 1-20 AWG.
Verical:
Conn Power Terminal Block HDR 4 POS 15mm Solder ST Thru-Hole 130A/Contact Carton
Newark:
# AMP - TE CONNECTIVITY 1986713-4 PWR TB DBL PIN 4P, 15.00 PCB New
MASTER:
POWER TERMINAL BLOCK, SOLDERABLE UP TO 275DEG C DOUBLE PIN MODULAR 02 - 12 POLES
Online Components:
PWR TB DBL PIN 4P, 15.00 PCB
Electro Sonic:
PWR TB DBL PIN 4P, 15.00 PCB
触点数 4
线规 1AWG ~ 20AWG
触点电镀 Tin
绝缘电阻 1000 MΩ
排数 1
电路数 4
额定电流Max 130A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 600 VAC
工作电压Max 600 VAC
安装方式 Through Hole
高度 39 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -40℃ ~ 110℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1986713-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1986714-4 泰科 | 完全替代 | 1986713-4和1986714-4的区别 |
