HONEYWELL 1DM1 安全联锁开关, DM系列, SPDT, 快速连接，焊接, 277 V, 10 A, 未评级

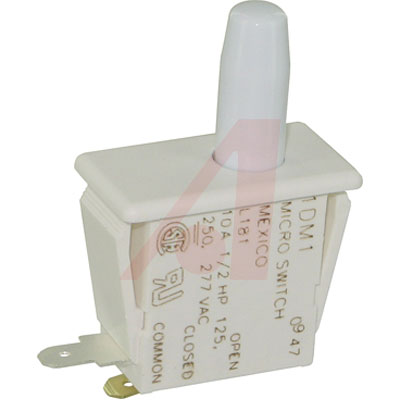

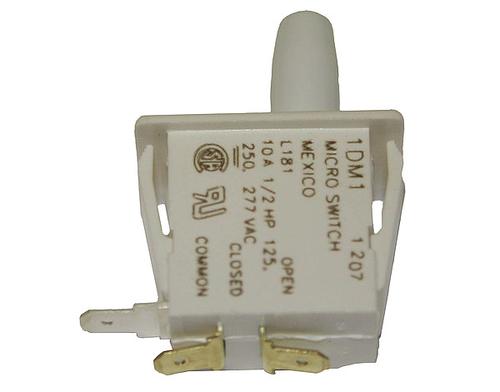

The is a single-pole double-throw SPDT snap-in panel-mount safety interlock Basic Switch with quick-connect/solder terminals for ease of installation. The MICRO SWITCH™ DM series accepts a button for manual operation and has momentary action, white bullet nose plunger. The switch is designed for a variety of applications and known for their compact, lightweight design and accurate repeatability.
- .
- White faceplate
- .
- Long life
- .
- -37 to 82°C Operating temperature range
额定电压AC 125 V
额定电流 10A AC
触点类型 SPDT
针脚数 2
触点额定电流 10.0 A
额定电流Max 10 A
工作温度Max 82 ℃
工作温度Min -37 ℃
额定电压 277 VAC
额定电压AC Max 277 V
安装方式 Panel
长度 25.4 mm
高度 49.78 mm
触点材质 Silver
工作温度 -37℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
制造应用 安全, Security, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1DM1 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
1DM401 霍尼韦尔 | 功能相似 | 1DM1和1DM401的区别 |
