Switch Slide ON None ON SPDT Top Slide 6A 250VAC 28VDC PC Pins Thru-Hole
Miniature Slide Switch
立创商城:
1101M2S3CQE1
艾睿:

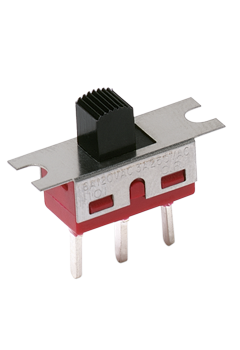

Turn your circuit on and off using this 1101M2S3CQE1 slide switch from C&a;K Components. It has a SPDT configuration. This device has a maximum current rating of 6 A @ 120VAC 28VDC. This slide switch has an operating temperature range of -30 °C to 65 °C. The 1101M2S3CQE1 slide switch has a PC pin termination style. This product is 12.7 mm long, 12.98 mm tall and 6.6 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
Switch Slide ON None ON SPDT Top Slide 6A 250VAC 2
Verical:
Switch Slide ON None ON SPDT Top Slide 6A 250VAC 28VDC PC Pins Thru-Hole Bulk
MASTER:
Miniature Slide Switch
Electro Sonic:
Miniature Slide Switch
排数 1
额定电流Max 6A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Through Hole
封装 -
长度 12.7 mm
高度 12.98 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 65℃
产品生命周期 40000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509050
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1101M2S3CQE1 C&K Components | 当前型号 | 当前型号 |
1101M2S3CGE2 C&K Components | 完全替代 | 1101M2S3CQE1和1101M2S3CGE2的区别 |
1101M2S3CGE1 C&K Components | 完全替代 | 1101M2S3CQE1和1101M2S3CGE1的区别 |
