HONEYWELL 111SM1-T 微型开关, 摁入式

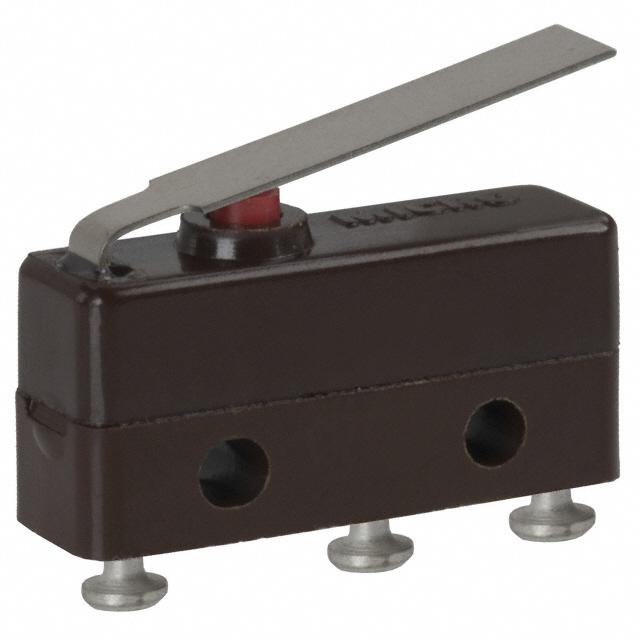

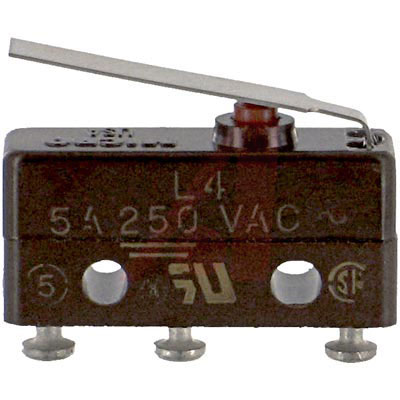

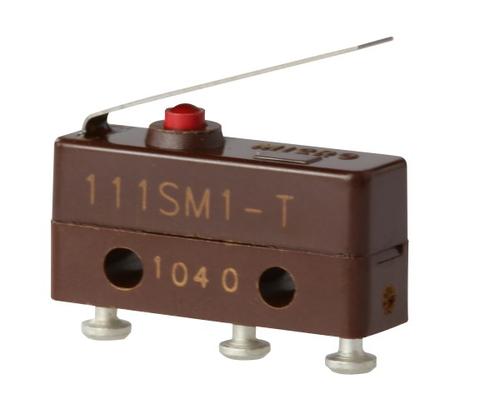

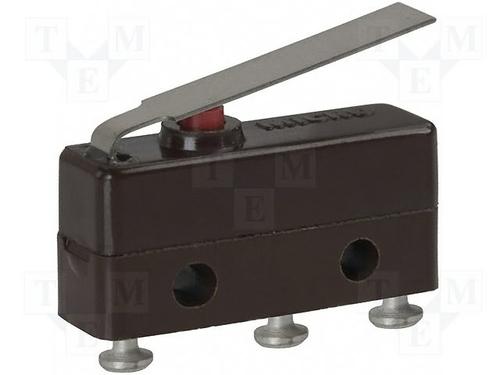

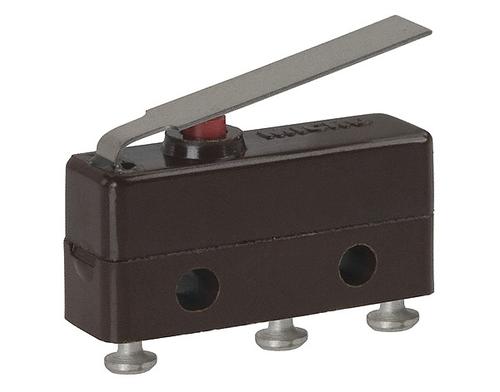

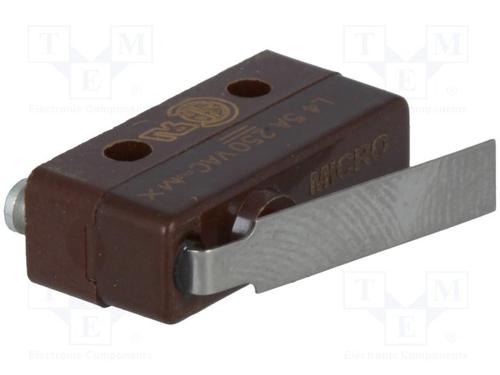

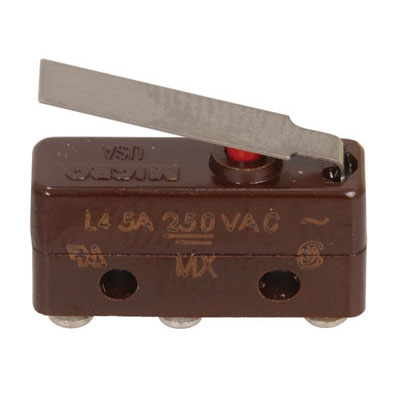

The is a single-pole double-throw SPDT Premium Subminiature Basic Microswitch with a straight roller lever actuator, solder terminals and ON/OFF function. The MICRO SWITCH™ SM series switch is slightly larger than the MICRO SWITCH™ SX series switch. This switch combines small size and light weight with ample electrical capacity, precision operation and long operating life. The SM Series offers gold contacts for low-energy switching and gold bifurcated contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SM switch.
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- General purpose phenolic housing
- .
- High precision and repeatability
- .
- Compact and robust
额定电压DC 30 V
接触器类型 Straight Lever
额定电压AC 250 V
额定电流 5 A
触点类型 SPDT
针脚数 2
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -54 ℃
额定电压 250 VAC
安装方式 Chassis
长度 19.8 mm
宽度 6.4 mm
高度 13.7 mm
触点材质 Silver
工作温度 -54℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 测试与测量, 医用, Medical, Communications & Networking, Avionics, Sensing & Instrumentation, 航空电子, Computers & Computer Peripherals, 通信与网络, 传感与仪器, 消费电子产品, Consumer Electronics, Test & Measurement, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
111SM1-T Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
ZM50E10F01 霍尼韦尔 | 类似代替 | 111SM1-T和ZM50E10F01的区别 |
SS-5GL 欧姆龙 | 功能相似 | 111SM1-T和SS-5GL的区别 |
ZM50E10E01 霍尼韦尔 | 功能相似 | 111SM1-T和ZM50E10E01的区别 |
