1776113-5

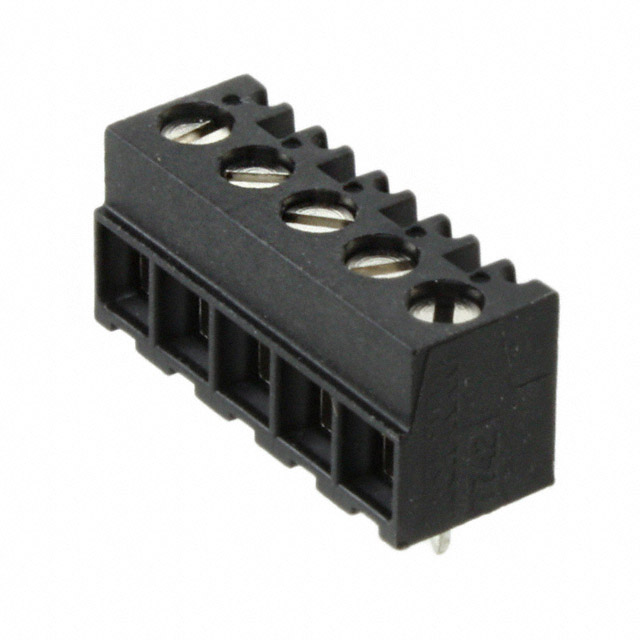

Conn Terminal Block F 5POS 3.81mm Screw ST Thru-Hole 12.5A/Contact

5 接线板 - 线至板 水平，带板 0.150"（3.81mm） 通孔

得捷:
TERM BLK 5P SIDE ENT 3.81MM PCB

艾睿:
Ideal for testing purposes this 1776113-5 PCB terminal block manufactured from TE Connectivity will exceed your needs. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin/nickel. It has a straight body orientation. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 150 VAC. Its pitch is 3.81 mm. This device has a maximum current rating of 12.5 A/contact. 1776113-5 is housed in polyamide. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 16-28 AWG. This product is 19.05 mm long, 8.5 mm tall and 7.3 mm deep. It uses the screw termination method.

安富利:
Conn Terminal Block F 5 POS 3.81mm Screw ST Thru-Hole 12.5A/Contact

Verical:
Conn Terminal Block F 5 POS 3.81mm Screw ST Thru-Hole 12A

Newark:
# AMP - TE CONNECTIVITY  1776113-5  5P,3.81MM,SIDE ENTRY,HIGH TMP New

MASTER:
TERMINAL BLOCK, PCB MOUNT, STRAIGHT, 8.5mm PROFILE, SIDE WIRE ENTRY, 3.81mm PITC

Powell:
Terminal Block Connectors

Online Components:
5P,3.81MM,SIDE ENTRY,HIGH TMP

Electro Sonic:
5P,3.81MM,SIDE ENTRY,HIGH TMP
