120-202EAG-Q01概述

Thermistor; Glass; 2000Ω @ 25 C; 20%; 0.060 Dia.; 1.75; L; 300Deg Max. Temp

NTC 器 2k 圆柱形探针,玻璃


得捷:
THERMISTOR NTC 2KOHM 3442K PROBE


艾睿:
This 120-202EAG-Q01 thermistor by Honeywell is an ideal temperature-sensing component to use in circuits where space is valuable.


Allied Electronics:
Glass; 2000 Ohms @ 25 ° C; 1.75 in.; 300 ° C; 20%


Verical:
NTC Thermistors 2K Ohm 20% RAD Thermistor Probe


Powell:
THERMISTORS


120-202EAG-Q01中文资料参数规格
技术参数

电阻 2 kΩ

阻值偏差 ±20 %

工作温度Max 300 ℃

封装参数

安装方式 Radial

封装 Cylindrical Probe, Glass

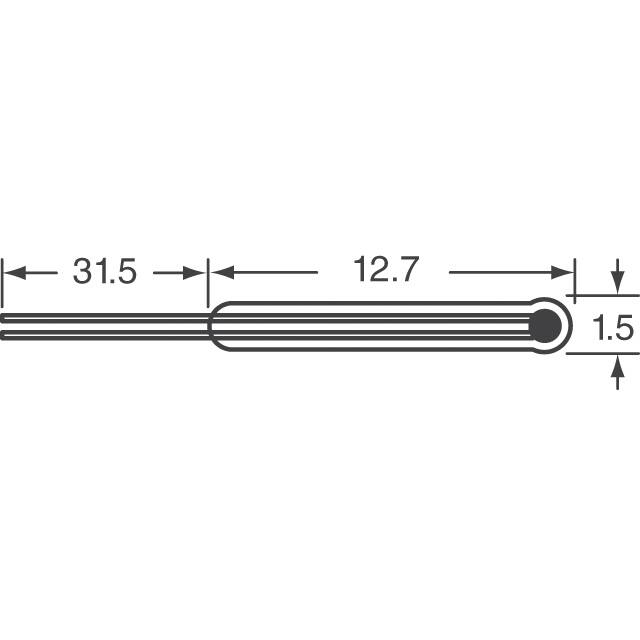

外形尺寸

长度 12.7 mm

脚长度 1.75 in

封装 Cylindrical Probe, Glass

物理参数

工作温度 -60℃ ~ 300℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 8536509040

数据手册

在线购买120-202EAG-Q01
型号: 120-202EAG-Q01
描述:Thermistor; Glass; 2000Ω @ 25 C; 20%; 0.060 Dia.; 1.75; L; 300Deg Max. Temp
