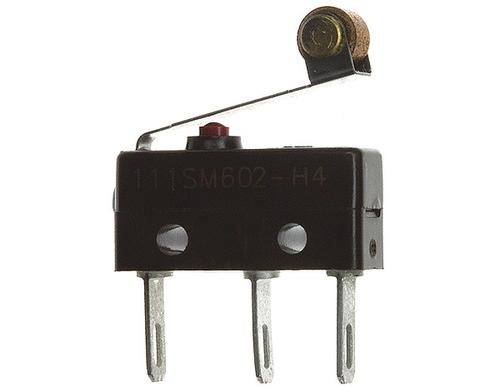

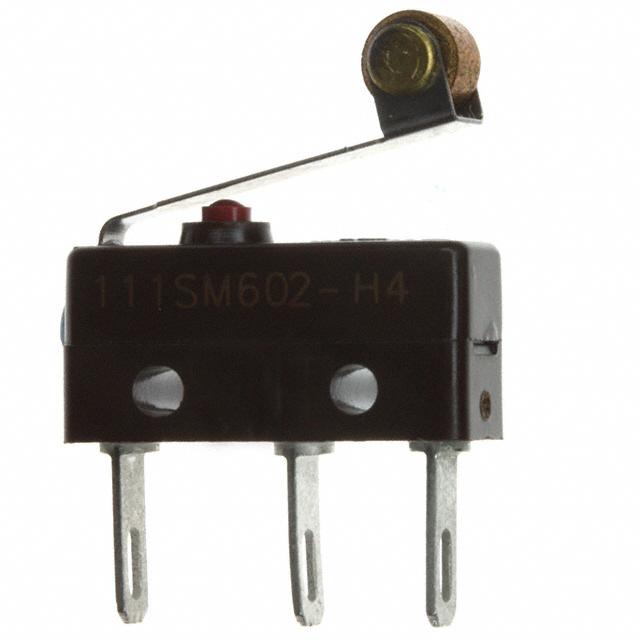

HONEYWELL 111SM602-H4 微型开关, 摁入式
** Micro Switch™ - SM Series Subminiature Switch**
The Honeywell series of sub miniature switches have been designed for simple and precision on/off application needs. The micro switch combines small size and light weight with precision operation, ample electrical capacity and long operating life.
欧时:
Switch SPDT 5A 250V Roller Lever QC
贸泽:
Basic / Snap Action Switches 5A 250 VAC SPDT
e络盟:
微型开关, 摁入式
艾睿:
Only this 111SM602-H4 snap-action switch from Honeywell can open or close your circuit at the fastest speed. It has a SPDT configuration. This device has a maximum current rating of 5. This snap action switch has an operating temperature range of -53 °C to 121 °C. The 111SM602-H4 snap action switch has a quick connect/solder lug termination style. This product is 19.84 mm long, 25.04 mm tall and 6.35 mm deep. The maximum AC voltage rating is 250CE/CSA/KEMA/UL VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
Basic Switch; SM Series; SPDT; 5A 250VAC; Roller Lever; QC Tabs
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect/Solder Lug 5A 250VAC 30VDC 1.95N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect/Solder Lug 5A 250VAC 30VDC 1.95N Screw Mount
Newark:
# HONEYWELL 111SM602-H4 Microswitch, SM Series, SPDT, Quick Connect, Solder, 5 A, 250 VAC, 30 VDC
MASTER:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] Maximum Operating Force, 3 mm [0.12 in] Integral Flexible Leaf with Roller Lever Actuator, 2,8 mm x 0,51 mm [0.110 in x 0.020 in] Quick Con
Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] ...
Electro Sonic:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] ...
