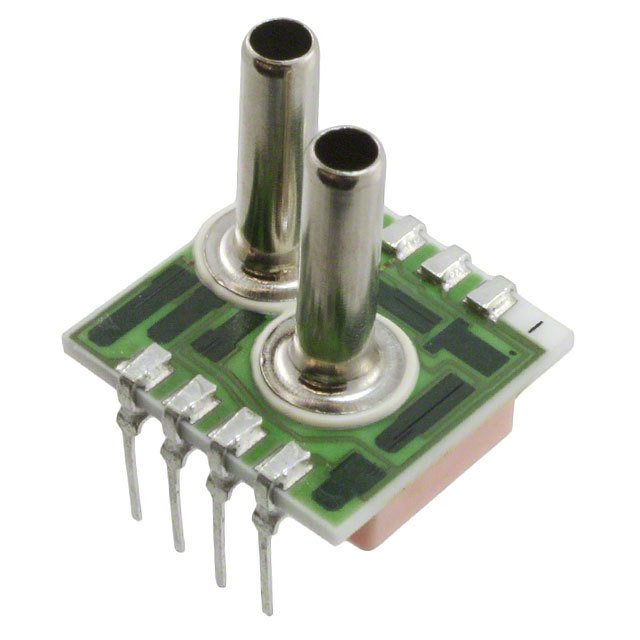

1210A-005G-3S

Pressure Sensor 0V to 0.04V 0inH2O to 5inH2O Gage 8Pin

**** The pressure range for this part is 5psig. This is a guage pressure sensor, with a short pressure port. The leads are facing down, the opposite direction of the pressure port. The  Measurement Specialties 1210 series solid state pressure sensors are a cost effective solution for applications that require a calibrated performance over a wide temperature range. The dual line package configuration is available from 10 inches of water column to 100 psi ranges, single, dual and no port configurations, and gauge and absolute pressure ranges. Applications include: * Handheld Calibrators * Ventilation * Air Flow * Leak detection * Respirator monitoring * Barometer/Altimeter
