GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-2Psi, 0-100mV, ROUND, THROUGH HOLE MOUNT, ROHS COMPLIANT, TO-8

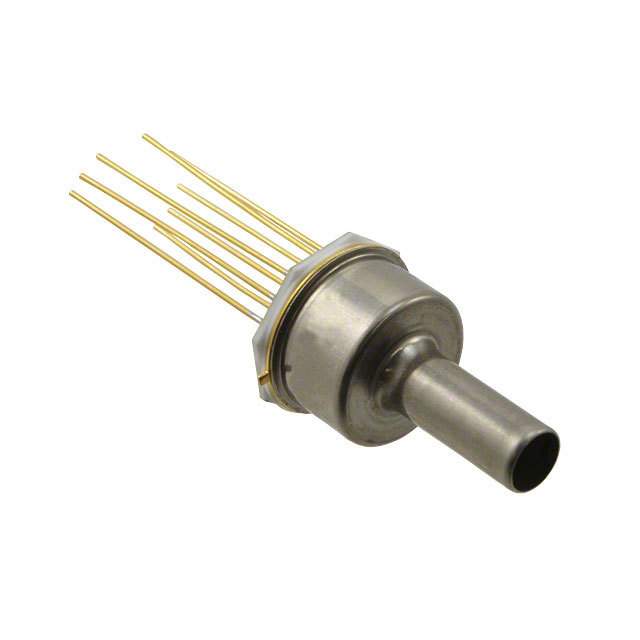

The Model 13 is a temperature compensated, piezoresistive silicon pressure sensor packaged in TO-8 configurations. It provides excellent performance and long-term stability. Gage and absolute pressure ranges from 0-2 PSI to 0-250 PSI are available. Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity interchangeability of ±1%. Possible Applications: Medical Instruments Barometric Pressure HVAC Process Control Vacuum Measurement Air Flow Management
