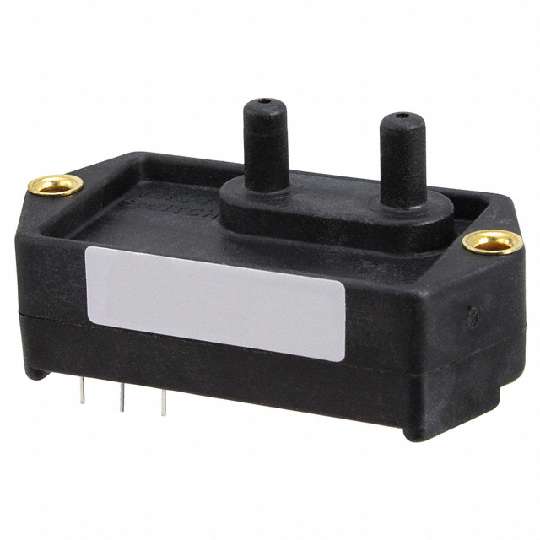

HONEYWELL 142PC01D 压力传感器, 电压输出, 8V, 0-1 PSI
Pressure Sensor, 1 ms Response Time, 8 mA Current Rating
* PCB terminals on opposite side from the ports
Fully signal conditioned.
得捷:
SENSOR 1PSID 0.2" 6V
欧时:
压力传感器
贸泽:
板机接口压力传感器 0-1.0Psi Gague Amplified Port Style
e络盟:
压力传感器, 电压输出, 8V, 0-1 PSI
艾睿:
Board Mount Pressure Sensor 0psi to 1psi Differential/Gage 3-Pin
Allied Electronics:
Sensor, Force, Differential Gauge, 7 to16VDC, Through Hole, 1psi, 8mA
Chip1Stop:
Pressure Sensor 0psi to 1psi Differential 3-Pin
Verical:
Board Mount Pressure Sensor 0psi to 1psi Differential/Gage 3-Pin
Newark:
# HONEYWELL 142PC01D Pressure Sensor, Amplified, Voltage, 1 psi, Differential, 8 VDC, Straight, 8 mA
MASTER:
Pressure Sensor 0psi to 1psi Differential 3-Pin
Powell:
Sensors, Pressure Transducers, Piezoresistive Silicon
Online Components:
Pressure Sensor 0psi to 1psi Differential 3-Pin
Win Source:
SENSOR GAUGE 1 PSI / Pressure Sensor 1PSI 6.89kPa Differential Male - 0.2" 5mm Tube, Dual 1 V ~ 6 V 3-SIP Module
电源电压DC 8.00V max
额定电压DC 8.00 V
额定电流 8.00 mA
输出电压 1V ~ 6V
供电电流 8 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.75 %
额定电压 8 VDC
电源电压 7V ~ 16V
安装方式 Through Hole
引脚数 3
封装 SIP-3
高度 28.5 mm
封装 SIP-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
